2/3" 4K ENG/EFP Portable Lenses

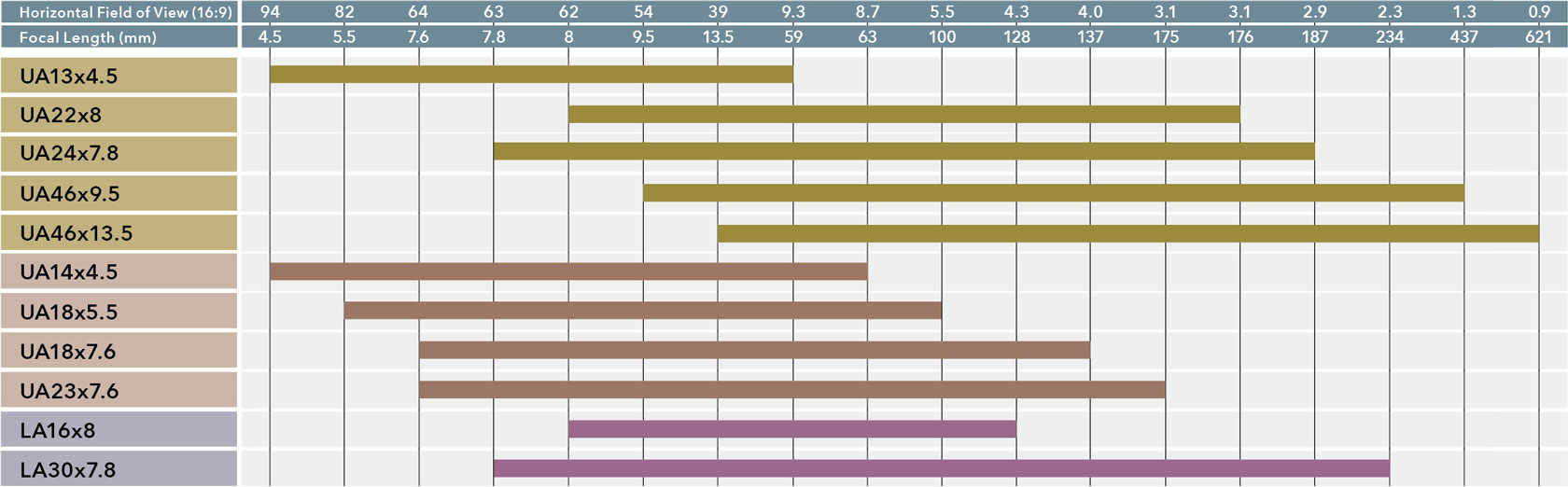

![[image] Chart comparing the Horizontal Field of View (16:9) and the Focal Length (2/3 inch) by model number](https://asset.fujifilm.com/www/pe/files/2019-09/97ce8f4603fe9d7a4d2712368697c044/fig_4KPortablelens_01.jpg)
Lineups
4K Plus Premier Series
UA13x4.5BERD
- Advanced optical performance that enables 4K compatibility under any shooting conditions
- Powerful 4K footage with 13x zoom from 4.5mm in wide angle
- 9-blade round iris enabling natural bokeh in images
- Equipped with 16bit encoder for virtual device
![[photo] 4K portable lens model UA13x4.5BERD](https://asset.fujifilm.com/www/pe/files/2019-09/8b0b9acb9771a08352c375e748d45edd/pic_4KPortablelens_02.jpg)
Specifications
- Model Name
UA13x4.5BERD
- Focal Length
[1x]
4.5mm-59mm[2x]
9mm-118mm- Zoom ratio
13x
- Extender
2x
- Maximum relative aperture (F-no.)
1:1.8 (4.5mm-41mm) 1:2.6 (59mm)
- Minimum object distance (M.O.D.) from front lens
0.3m
- Object dimensions at M.O.D.
16 : 9 Aspect ratio [1x]
4.5mm 744mm x 418mm
59mm 54mm x 30mm[2x]
9mm 367mm x 206mm
118mm 28mm x 16mm- Angular field of view
16 : 9 Aspect ratio [1x]
4.5mm 93.6° × 61.8°
59mm 9.3° × 5.2°[2x]
9mm 56.1° × 33.3°
118mm 4.7° × 2.6°- Filter Thread
M127 x 0.75(Filter attaches to the lens hood)
- Approx. Size
Φ95 x 253mm (ΦxLength)
- Approx. Mass
2.28kg (without lens hood)
UA22x8BERD
- Advanced optical performance that enables 4K compatibility under any shooting conditions
- Powerful 4K footage with 22x zoom from 8mm in wide angle
- New drive unit design for enhanced operability
- Compatibility with typical accessories used in TV broadcast operation.
- Equipped with 16bit encoder for virtual device
![[photo] 4K portable lens model UA22x8BERD](https://asset.fujifilm.com/www/pe/files/2019-09/f47e997f6d160d2e3af9301469575734/pic_4KPortablelens_01.jpg)
Specifications
- Model Name
UA22x8BERD
- Focal length
[1x]
8.0-176mm[2x]
16-352mm- Zoom ratio
22x
- Extender
2x
- Maximum relative aperture (F-no.)
1:1.8 (8-124mm) 1:2.55 (176mm)
- Minimum object distance (M.O.D.) from front lens
0.85m
- Object dimensions at M.O.D.
16 : 9 Aspect ratio [1x]
8mm 905mm × 509mm
176mm 43mm × 24mm[2x]
16mm 472mm × 265mm
352mm 22mm × 12mm- Angular field of view
16 : 9 Aspect ratio [1x]
8mm 61.9° × 37.2°
176mm 3.1° × 1.8°[2x]
16mm 33.4° × 19.1°
352mm 1.6° × 0.9°- Filter Thread
M127 × 0.75 (Filter attaches to the lens hood)
- Approx. Size
Φ110 x 241.5mm (ΦxLength)
- Approx. Mass
2.55kg (without lens hood)
UA24x7.8BERD
- 24x zoom covering a wide range of scenes from 7.8mm at wide angle to 187mm at telephoto.
- Compact and lightweight body, measuring 220.5mm and 1.98kg.
- Achieving natural bokeh with the adoption of nine aperture blades
- Excellent 4K optical performance
- 16bit encoders device for virtual system
![[photo] 4K portable lens model UA24x7.8BERD](https://asset.fujifilm.com/www/pe/files/2019-09/869825876fa09e6ae31e7c7a8290dfcc/pic_4KPortablelens_16.jpg)
Specifications
- Model Name
UA24x7.8BERD
- Focal Length
[1x]
7.8-187mm[2x]
15.6-374mm- Zoom Ratio
24 x
- Extender
2 x
- Maximum Relative Aperture (F-No.)
1:1.8(7.8-118mm) 1:2.85(187mm)
- Minimum Object Distance (M.O.D.) from Front Lens
0.8m
- Object Dimensions at M.O.D.
16 : 9 Aspect Ratio [1×]
7.8mm 883mm × 496mm
187mm 38mm × 21mm[2×]
15.6mm 459mm × 258mm
374mm 20mm × 11mm- Angular Field of View
16 : 9 Aspect Ratio [1×]
7.8mm 63.2° × 38.1°
187mm 2.9° × 1.7°[2×]
15.6mm 34.2° × 19.6°
374mm 1.5° × 0.8°- Filter Thread
M95 x 1 / M107 x 1 (Filter attaches to the lens hood)
- Approx. Size
Φ100 x 220.5mm (ΦxLength)
- Approx. Mass
1.98kg (without lens hood)
UA46x9.5BERD
- The world’s highest zoom ratio in a broadcast portable lens for 4K video production, realizing a 46x zoom
- Reproduces rich tones using state-of-the-art optical design technology
- Equipped with a proprietary anti-vibration mechanism, supporting 4K video production
- Newly developed drive unit realizes a high level of operability
- Realizes natural bokeh with the adoption of a nine aperture blade design
![[photo] 4K portable lens model UA46x9.5BERD](https://asset.fujifilm.com/www/pe/files/2019-09/c74426fe41528c7f15fcc50bd7e7dd90/pic_4KPortablelens_17.jpg)
Specifications
- Model Name
UA46x9.5BERD
- Focal Length
[1x]
9.5mm-437mm[2x]
19-874mm- Zoom Ratio
46 x
- Extender
2 x
- Maximum Relative Aperture (F-No.)
1:2.0(9.5mm-224mm) 1:3.9(437mm)
- Minimum Object Distance (M.O.D.) from Front Lens
2.8m
- Object Dimensions at M.O.D.
16 : 9 Aspect Ratio [1×]
9.5mm 2653mmx1491mm
437mm 59mmx33mm[2×]
19mm 1331x748mm
874mm 30x17mm- Angular Field of View
16 : 9 Aspect Ratio [1×]
9.5mm 53.6°x31.7°
437mm 1.3°x0.7°[2×]
19mm 28.3°x16.1°
874mm 0.6°x0.4°- Filter Thread
M127 x 0.75
- Approx. Size
Φ146.5 x 345.8(ΦxLength)
- Approx. Mass
5.7kg(without lens hood)
UA46x13.5BERD
- World's highest*1 46x zoom ratio and longest focal length*2 of 621mm in a portable 4K broadcast lens
- Cutting-edge optical design technology for rich tonal gradation
- Use of the proprietary anti-vibration mechanism to support 4K video production
- Use of a high-performance drive unit for comfortable operability
- Natural bokeh achieved with nine-blade diaphragm
![[photo] 4K portable lens model UA46x13.5BERD](https://asset.fujifilm.com/www/pe/files/2019-09/806d0ecd997f33e9cf9904e31ec30cb6/pic_4KPortablelens_18.jpg)
Specifications
- Model Name
UA46x13.5BERD
- Focal Length
[1x]
13.5mm-621mm[2x]
27-1242mm- Zoom Ratio
46 x
- Extender
2 x
- Maximum Relative Aperture (F-No.)
1:2.8(13.5mm-316mm) 1:5.5(621mm)
- Minimum Object Distance (M.O.D.) from Front Lens
2.8m
- Object Dimensions at M.O.D.
16 : 9 Aspect Ratio [1×]
13.5mm 1886mmx1060mm
621mm 42mmx24mm[2×]
27mm 936mmx526mm
1242mm 21mmx12mm- Angular Field of View
16 : 9 Aspect Ratio [1×]
13.5mm 39.1°x22.6°
621mm 0.9°x0.5°[2×]
27mm 20.1°x11.4°
1242mm 0.4°x0.2°- Filter Thread
M127 x 0.75
- Approx. Size
Φ146.5 x 364.2(ΦxLength)
- Approx. Mass
5.8kg(without lens hood)
*1 World's largest zoom magnification among portable 4K broadcast lenses according to Fujifilm data as of September 13, 2018
*2 World's longest focal length among portable 4K broadcast lenses according to Fujifilm data as of September 13, 2018
4K Premier Series
UA14x4.5BERD
- Advanced optical performance with 4K compatibility across the zoom range
- Achieving natural bokeh with the adoption of nine aperture blades
- Compact and lightweight body, measuring 238.5mm
- 4K image quality in a variety of situations
- Controlling distortions and aberrations at edges
![[photo] 4K portable lens model UA14x4.5BERD](https://asset.fujifilm.com/www/pe/files/2019-09/8995f6ea9a1ae6f2cfcd2234ec06219b/pic_4KPortablelens_03.jpg)
Specifications
- Model Name
UA14x4.5BERD
- Focal length
[1x]
4.5-63mm[2x]
9-126mm- Zoom ratio
14x
- Extender
2x
- Maximum aperture ratio
1:1.8 (4.5mm - 41mm) 1:2.8 (63mm)
- Minimum object distance (M.O.D) from the front lens element
0.3m
- Object Dimensions at M.O.D. 16 : 9 Aspect Ratio
[1x]
4.5mm 744mm x 418mm
63mm 51mm x 29mm[2x]
9mm 365mm x 205mm
126mm 27mm x 15mm- Angular Field of View 16 : 9 Aspect Ratio
[1x]
4.5mm 93.6° x 61.8°
63mm 8.7° x 4.9°[2x]
9mm 56.1° x 33.3°
126mm 4.4° x 2.5°- Filter Thread
M127 x 0.75 (Filter attaches to the lens hood)
- Approx. Size
Φ95 x 238.5mm (ΦxLength)
- Approx. Mass
2.21kg (without lens hood)
UA18x5.5BE
- Advanced optical performance with 4K compatibility across the zoom range
- Achieving natural bokeh with the adoption of nine aperture blades
- Compact and lightweight design, weighing just 2kg
- 18x zoom covering a wide range of scenes from 5.5mm at wide angle to 100mm at telephoto
![[photo] 4K portable lens model UA18x5.5BE](https://asset.fujifilm.com/www/pe/files/2019-09/b2a3fc0384b3ade8d7827f04b1d6d60a/pic_4KPortablelens_04.jpg)
Specifications
- Model Name
UA18x5.5BE
- Focal length
[1x]
5.5-100mm[2x]
11-200mm- Zoom ratio
18x
- Extender
2x
- Maximum Relative Aperture (F-No.)
1:1.8(5.5-62mm) 1:2.9(100mm)
- Minimum Object Distance (M.O.D.) from Front Lens
0.4m
- Object Dimensions at M.O.D. 16 : 9 Aspect Ratio
[1x]
5.5mm 800mm x 450mm
100mm 44mm x 25mm[2x]
11mm 395mm x 222mm
200mm 22mm x 12mm- Angular Field of View 16 : 9 Aspect Ratio
[1x]
5.5mm 82.2° x 52.2°
100mm 5.5° x 3.1°[2x]
11mm 47.1° x 27.5°
200mm 2.7° x 1.5°- Filter Thread
M127 x 0.75 (Filter attaches to the lens hood)
- Approx. Size
Φ95 x 240.5mm (ΦxLength)
- Approx. Mass
2.04kg (without lens hood)
UA18x7.6BERD
- Standard focal length coverage 7.6-137mm (274mm with extender)
- 4K Premier optical performance
- Equiped New Ergonomical Digital Grip
- 16bit encoders device for virtual system
- Light weight & Compact Design
![[photo] 4K portable lens model UA18x7.6BERD](https://asset.fujifilm.com/www/pe/files/2019-09/30bdfaa488d52e162e76bc43c8c96f13/pic_4KPortablelens_19.jpg)
Specifications
- Model Name
UA18x7.6BERD
- Focal Length
[1x]
7.6-137mm[2x]
15.2-274mm- Zoom Ratio
18x
- Extender
2 x
- Maximum Relative Aperture (F-No.)
1:1.8(7.6-102mm) 1:2.4(137mm)
- Minimum Object Distance (M.O.D.) from Front Lens
0.6m
- Object Dimensions at M.O.D.
16 : 9 Aspect Ratio [1×]
7.6mm 696mm × 392mm
137mm 41mm × 23mm[2×]
15.2mm 362mm × 204mm
274mm 21mm × 12mm- Angular Field of View
16 : 9 Aspect Ratio [1×]
7.6mm 64.5°x39°
137mm 4°x2.3°[2×]
15.2mm 35°x20.1°
274mm 2°x1.1°- Filter Thread
M82x0.75
- Approx. Size
Φ85x204mm(ΦxLength)
- Approx. Mass
1.74kg (without lens hood)
UA23x7.6BERD
- High Power Zoom Ratio 23x in ENG Style lens
- 4K Premier optical performance
- Equiped New Ergonomical Digital Grip
- 16bit encoders device for virtual system
- Light weight & Compact Design
![[photo] 4K portable lens model UA23x7.6BERD](https://asset.fujifilm.com/www/pe/files/2019-09/d41db8e6a94c544f6d7ba7017f1b4fb6/pic_4KPortablelens_20.jpg)
Specifications
- Model Name
UA23x7.6BERD
- Focal Length
[1x]
7.6-175mm[2x]
15.2-350mm- Zoom Ratio
23x
- Extender
2 x
- Maximum Relative Aperture (F-No.)
1:1.8(7.6-119mm) 1:2.65(175mm)
- Minimum Object Distance (M.O.D.) from Front Lens
0.8m
- Object Dimensions at M.O.D.
16 : 9 Aspect Ratio [1×]
7.6mm 915mm × 514mm
175mm 41mm × 23mm[2×]
15.2mm 473mm × 266mm
350mm 21mm × 12mm- Angular Field of View
16 : 9 Aspect Ratio [1×]
7.6mm 64.5°x39°
175mm 3.1°x1.8°[2×]
15.2mm 35°x20.1°
350mm 1.6°x0.9°- Filter Thread
M95x1 / M107x1(Filter attaches to lens hood)
- Approx. Size
Φ100x221.4mm(ΦxLength)
- Approx. Mass
1.95kg (without lens hood)
