Thermoscale is a epoch-making film that enables anyone to measure heat distribution easily by observing variations in density and hue.

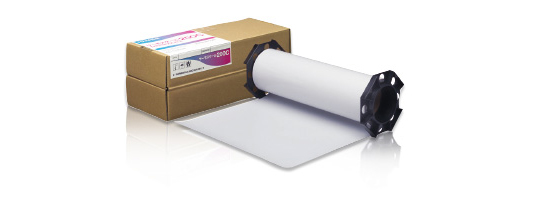

Thermoscale 200C can be used for higher temperatures (150°C to 210°C). There are two types: the roll type and the sheet type.
Thermoscale 100 can be used for lower temperatures (80°C to 105°C).
Thermoscale uses special technology that regulates color intensity and hue in accordance with heat value to generate a highly accurate depiction of heat distribution over a wide range of heat values. Thermoscale is ideal for applications involving analysis of heat distribution during press, roll, and laminate processes and in drying ovens.
Printed substrates, solar panels, protective film laminating
ACF compression bonding, heat seals, Li-ion batteries, solar panels
Nip roll, calendar roll, printing roll, printer roll
Drying oven, baking oven, vacuum film production, measuring surface heat distribution on parts
|
Type |
Temperature range |
Base layer |
Thickness |
Product size |
|
|---|---|---|---|---|---|
|
Roll type |
Sheet type |
||||
|
Thermoscale 200C |
150℃～210℃*1 |
PEN |
0.09mm |
270mm×5m |
270mm×200mm（5 sheets） |
|
Thermoscale 100 |
80℃～105℃*2 |
PET |
0.09mm |
297mm×10m |
---- |
- * Depending on usage conditions (such as contact time, material type, pressure, and wind), the temperature range in which it can be used may change.
- *1 Contact time = 5 to 20 seconds
- *2 Contact time = 1 to 10 seconds
