ENG/EFP Portable Lens System Configuration

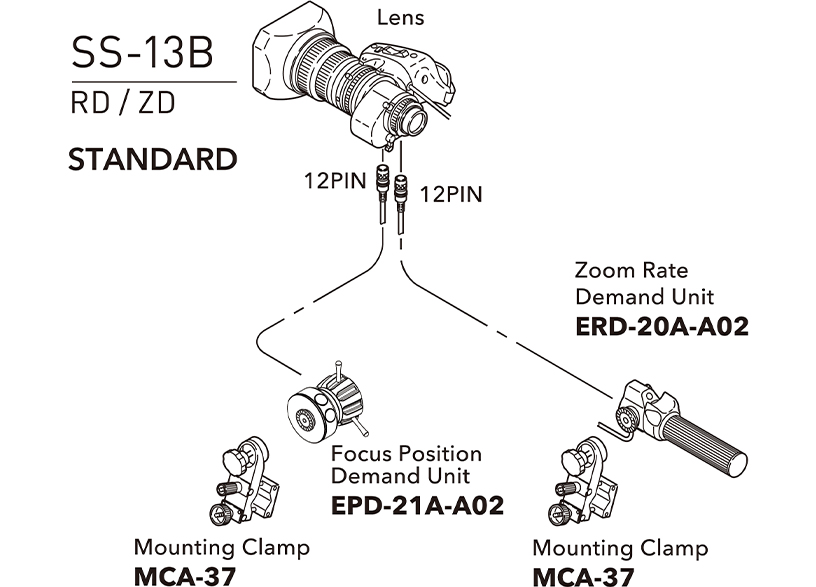

Full-Servo Control Kit (Servo Focus/ Servo Zoom]

SS-13A

RD/ ZD , STANDARD

SS-15D

RD/ ZD , DIGIPOWER

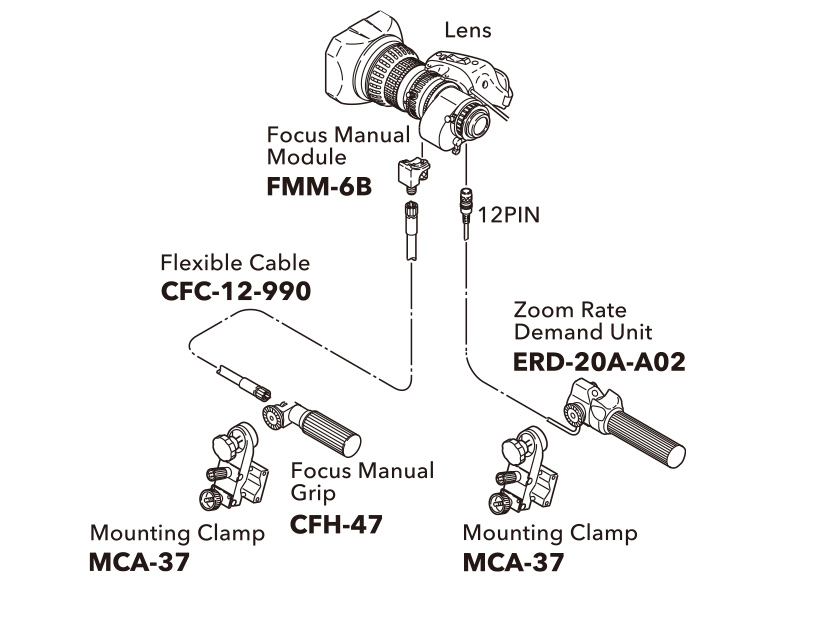

Semi-Servo Control Kit （Manual Focus/ Servo Zoom）

MS-13A

RM/ZM , STANDARD

MS-15D

RM/ZM , DIGIPOWER

Control Accessories Compatibility (Premier Series, Select Series and Broadcast Lenses)

  Description Model Name RM RD/ZD
Focus Manual Focus Grip CFH-47 ● ●
Mounting Clamp MCA-37 ● ●
Flexible Cable CFC-12-990 ● ●
Focus Manual Module FMM-6B ● ●
  FMM-3D (for 46x series, 42x series)   ●
  FMM-9 (for UA22x8)   ●
Servo Digital Focus Position Demand Unit EPD-41A-D01 / D02   ●
Mounting Clamp MCA-37   ●
Focus Position Demand Unit EPD-21A-A01 / A02 ● ●
Mounting Clamp MCA-7 ● ●
Focus Servo Position Module FSP-13G ●*1
Zoom Servo Digital Zoom Rate Demand Unit ERD-40A-D01 ● ●
Mounting Clamp MCA-37   ●
Zoom Rate Demand Unit ERD-20A-A02 ● ●
Mounting Clamp MCA-7 ● ●
Other VTR Contorl Unit VRS-20
Return Control Unit EXT-30
Lens Supporter ALH-127A-01A ( for 46x series,for 42x series)
External OS-TECH Adapter TS-P58A (HA14,HA18,HA22,HA23,HA25,HA42）
OS-TECH Control Unit EA-12A-03BA
Extention Cable For Focus Position
Demand Unit/Zoom Rate Demand Unit		 ECE-1000 (1m) / -2000 (2m) / -3000 (3m)
       -4000 (4m) / -5000 (5m) / -10000 (10m)*2
Cable for Lens⇔PC SA-206D-005 / SA-206A-005*3
2x Extender Change Unit (Motor Drive) ECU-2C
ECU Adapter(for UA22x)  ECU-1AD
ECU Adapter(for UA13x)  ECU-2AD



  •
  •
  •
  •
  •
  • *1 It is available only with EPD-21-A01/A02
  • *2 Longer Cables are also available
  • *3 SA-206A-005 is specifically designed for HA25x, HA42x
  •
  •
  •
  •
  •

Digital  Zoom Demand

ERD-40A-D01

   DIP No. Function
AUX1 1-1 OIS(Alternate)
1-2 Preset Zoom
1-3 Preset Z+F
1-4 EXT
1-5 INCOM(ENG)
1-6 INCOM(PD)
Zoom Mode
Switch		 1-7 Z curve select
1-8 Z curve select
RET2/AUX SEL 2-1 RET2 ⇔ AUX2
RET1  2-2 ON/OFF
RET2 2-3 ON/OFF
AUX2 2-4 VTR(REC)
2-5 EXT
2-6 INCOM(ENG)
2-7 INCOM(PD)
2-8 OIS(Alternate)

Digital Focus Demand

EPD-41A-D01/ D02

  DIP No. Function
AUX1 1 RET1
2 AUX1 ⇔ AUX2
AUX2 3 RET2
4 OIS
5 PRESET

eXceed Series System Configuration

MS-01

RM

SS-01

RM

MS-X1

For XA16x8

Control Accessories Compatibility

  Description Model Name

RM
Standard
Focus Manual Focus Grip CFH-3 ●
Flexible Cable  CFC-12-990  ●
Focus Manual Module  FMM-6B  ●
  FMM-X1(for XA 16x8}  ●
Servo Focus Servo Module FSM-30B ●
Focus Position Demand Unit FSD-11 ●
Zoom Servo Zoom Rate Demand Unit SRD-92B ●
Other VTR Control Unit  VRS-2
Extention Cable For Focus Servo Demand Unit  ECA-1000(1m) / -5000(5m) / -10000(10m)*4
Extention Cable For Zoom Rate Demand Unit ECC-1000(1m) / -5000(5m) / -10000(10m)*4
For 12PIN Lens Cable  ECE-R22



  • *4 Longer Cables are also available.
