FUJI DRI-CHEM SLIDE

This webpage content is intended for Healthcare Professionals only, not for general public.

Fujifilm DRI-CHEM SLIDE

Colorimetric method slide
(Enzymes, General chemistry, and Immunology)

This multilayered slide is composed of dry chemical ingredients needed for the reaction and other functional materials. It quantifies enzymes and chemicals using colorimetric method.

Potentiometric method slide
(Electrolytes)

Each slide comes with an ion selective film electrode for each of Na, K, and Cl. Slides quantify electrolytes in the sample by a potentiometric method.

Composition of multilayered analytical film

[image] DRI-CHEM Slide composition of multilayered film - Spreading layer, Reflection layer, Reaction layer, Transparent support film, and Spectrophotometer

Composition of multilayered film electrode

[image] Potentiometric method electrolytes slide - electrode terminal, potentiometer, pertition materials, and multilayered film electrode

Biochemical tests - General chemistry

24 slides/box

For plasma / serum

BUN-P Ⅲ

CRE-P Ⅲ

ALB-P Ⅲ

For albumin concentration

BUN-P Ⅲ

For urea-nitrogen concentration

Ca-P Ⅲ

For calcium concentration

CRE-P Ⅲ

For creatinine concentration

DBIL-P Ⅱ

For direct bilirubin concentration

GLU-P Ⅲ

For glucose concentration

HDL-C-P Ⅲ D

For high density lipoprotein cholesterol concentration

IP-P

For inorganic phosphorus concentration

Mg-P Ⅲ

For magnesium concentration

TBIL-P Ⅲ

For total bilirubin concentration

TCHO-P Ⅲ

For total cholesterol concentration

TCO₂-P

For total carbon dioxide concentration

Applicable only to the analyzers equipped with a 415 nm ﬁlter (DRI-CHEM NX500, NX700 and 7000)
Not applicable to PF function

UA-P Ⅲ

For uric acid concentration

TP-P Ⅲ

For total protein concentration

For plasma

[photo] Box of NH3-PⅡ DRI-CHEM Slides with 2 slides in foil wrapper, 2 slides without packaging (front and back view), and QC card

NH₃-PⅡ

For ammonia concentration

For whole blood

[photo] Box of NH3-W Ⅱ DRI-CHEM Slides with 2 slides in foil wrapper, 2 slides without packaging (front and back view), and QC card

NH₃-WⅡ

NH₃-W Ⅱ

For ammonia concentration

Biochemical tests - Enzymes

24 slides/box

For plasma / serum

GOT/AST-P Ⅲ

GPT/ALT-P Ⅲ

ALP-P Ⅲ

For alkaline phosphatase activity

AMYL-P Ⅲ

For amylase activity

CHE-P

For cholinesterase activity

CKMB-P

For creatine phosphokinase isozyme MB (CKMB) activity

CPK-P Ⅲ

For creatine phosphokinase activity

GGT-P Ⅲ

For γ-glutamyltransferase activity

GOT/AST-P Ⅲ

For aspartate aminotransferase (glutamic oxalacetic transaminase) activity

GPT/ALT-P Ⅲ

For alanine aminotransferase (glutamic pyruvic transaminase) activity

LAP-P

For leucine aminopeptidase activity

LDH-P Ⅲ

For lactate dehydrogenase activity

LIP-P

For pancreatic lipase activity

Biochemical tests - Electrolytes

For plasma / serum / whole blood

Na-K-Cl

24 slides/box
For Na-K-Cl ions concentrations

Reference Fluid RE

8 mL × 6 bottles/box
The specimen and the Reference Fluid RE are deposited on the sample side and the reference side respectively at the same time

Immunological test

For plasma / serum

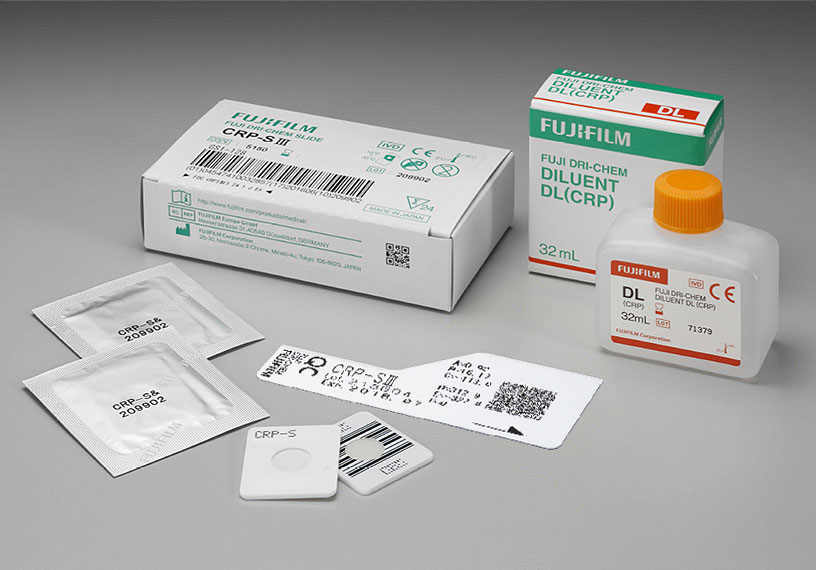

CRP-SⅢ

CRP-S Ⅲ

24 slides/box
For C-reactive protein concentration

Diluent DL (CRP)

32 mL × 1 bottle/box
The specimen must be diluted 21 times with Diluent DL (CRP)

Calibrator CP (CRP)

CP(CRP)

CP (CRP)

1ml × 3 levels/box
Calibrator CP (CRP) is required when performing calibration.
Do not remove holders attached to the bottles.

One pack panels

Comprehensive S-panel

6 panels/box, 12 slides/panel
TP, ALB, ALP, GLU, TBIL, IP, TCHO, GGT, GPT/ALT, Ca, CRE, BUN

* Currently available in limited countries

Small Screening S-panel

12 panels/box, 6 slides/panel
ALP, TBIL, GGT, GPT/ALT, CRE, GOT/AST

* Currently available in limited countries
