EG-600WR
![](https://asset.fujifilm.com/www/my/files/2020-05/7bb2433b79f2117aae5b78d4ca59dbd9/pic_gastroscopes_01.jpg)
![](https://asset.fujifilm.com/www/my/files/2020-05/91fbc5a3b7ac203725d817c15fd05fd3/pic_gastroscopes_02.jpg)
![](https://asset.fujifilm.com/www/my/files/2020-05/b48db13ed95daf1e5e4ff21f2cd9ef80/pic_gastroscopes_03.jpg)
- Viewing direction
0°(Forward)
- Field of view
140°
- Observation range
2-100 mm
- Distal end diameter
9.2 mm
- Insertion tube diameter
9.3 mm
- Minimum diameter of instrument channel
2.8 mm
- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400 mm
- Water Jet
Available
- Product: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
![](https://asset.fujifilm.com/www/my/files/2020-05/4982e7c3793975e42fba3a76c4791d96/fig_gastroscopes_01.jpg)
![](https://asset.fujifilm.com/www/my/files/2020-05/569f963ce892abcc77e9f626fbab639d/fig_gastroscopes_02.jpg)
![](https://asset.fujifilm.com/www/my/files/2020-05/a92fc9b79c25fe93e1a16812af4ce102/fig_gastroscopes_03.jpg)
EG-600ZW
![](https://asset.fujifilm.com/www/my/files/2020-05/3bfcf743b99b8535683b8a51a4887b7e/pic_gastroscopes_04.jpg)
![](https://asset.fujifilm.com/www/my/files/2020-05/d75c2a537f354b1da41c4ebdd7ec2b78/pic_gastroscopes_05.jpg)
![](https://asset.fujifilm.com/www/my/files/2020-05/236c2bdfb70d781d270fa29769480616/pic_gastroscopes_06.jpg)
- Viewing direction
0°(Forward)
- Field of view
Normal: 140° / Closest: 56°
- Observation range
1.5-100 mm
Normal: 3-100 mm
Closest: 1.5-2.5 mm- Distal end diameter
9.9mm
- Insertion tube diameter
9.8mm
- Minimum diameter of instrument channel
2.8mm
- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400mm
- Product: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
![](https://asset.fujifilm.com/www/my/files/2020-05/b6e9679905115682479c85555d13738a/fig_gastroscopes_04.jpg)
![](https://asset.fujifilm.com/www/my/files/2020-05/bf55f35826f6dd5cd9eb216e7a1caae5/fig_gastroscopes_05.jpg)
![](https://asset.fujifilm.com/www/my/files/2020-05/9ecaf1ed6ab55748d247285be665c574/fig_gastroscopes_06.jpg)
EG-580RD
![](https://asset.fujifilm.com/www/my/files/2020-05/036ce4ae20805b3c492513f8f33325ee/pic_gastroscopes_07.jpg)
![](https://asset.fujifilm.com/www/my/files/2020-05/e86f03e4be69000db818d72019dcb297/pic_gastroscopes_08.jpg)
- Viewing direction
0°(Forward)
- Field of view
140°
- Observation range
3-100mm
- Distal end diameter
9.8mm
- Insertion tube diameter
9.8mm
- Minimum diameter of instrument channel
3.2mm
- Bending capability
UP 210° / DOWN 120°
RIGHT 100° / LEFT 100°- Working length
1,100mm
- Total length
1,400mm
- Product: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
![](https://asset.fujifilm.com/www/my/files/2020-05/25f4370e39ccdbf48fd4d80630316db3/fig_gastroscopes_07.jpg)
![](https://asset.fujifilm.com/www/my/files/2020-05/7f3cb1b1c17553d4d2d9f2360010915e/fig_gastroscopes_08.jpg)
![](https://asset.fujifilm.com/www/my/files/2020-05/1c2789ee9f3fb0482785c57f4e090123/fig_gastroscopes_09.jpg)
EG-580NW2
![](https://asset.fujifilm.com/www/my/files/2020-05/a34f63cfdff470c6f8f091be8442de28/pic_gastroscopes_09.jpg)
![](https://asset.fujifilm.com/www/my/files/2020-05/637bf8fb09c015d6874f478266a5cef1/pic_gastroscopes_10.jpg)
- Viewing direction
0°(Forward)
- Field of view
140°
- Observation range
3-100mm
- Distal end diameter
5.8mm
- Insertion tube diameter
5.9mm
- Minimum diameter of instrument channel
2.4mm
- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,100mm
- Total length
1,400mm
- Product: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
![](https://asset.fujifilm.com/www/my/files/2020-05/9d3c53df5c0135d6f89455dd94d4a3de/fig_gastroscopes_10.jpg)
![](https://asset.fujifilm.com/www/my/files/2020-05/8c5d03c65479689f87a419176e332da5/fig_gastroscopes_11.jpg)
![](https://asset.fujifilm.com/www/my/files/2020-05/b843e74cc7aa70c8cac576115be57317/fig_gastroscopes_12.jpg)

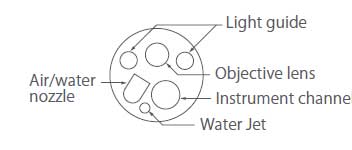

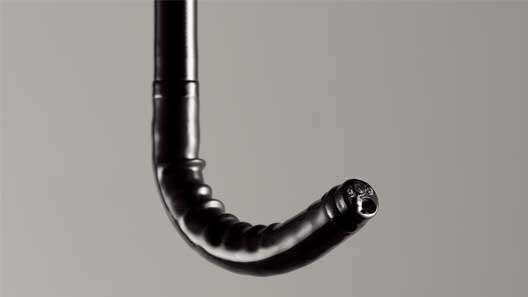

EG-760R
![](https://asset.fujifilm.com/www/my/files/2020-08/0a20f775cc9153316d04d6c456fb3abe/eg760g_pic1.png)
- Viewing direction
0°(Forward)
- Field of view
140°
- Observation range
2-100 mm
- Distal end diameter
9.2 mm
- Insertion tube diameter
9.3 mm
- Minimum diameter of instrument channel
2.8 mm

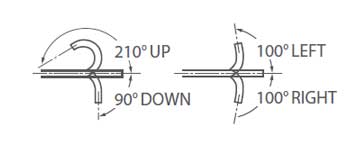

- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400 mm
- Water Jet
Available
- Product name: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
![](https://asset.fujifilm.com/www/my/files/2020-08/29c195fd4464c466a265ad0fc4ab585b/fig_eg760r_pic1.png)
![](https://asset.fujifilm.com/www/my/files/2020-08/3b5876a59bf51c94675bf7804686963c/fig_gastroscopes_02.jpg)
![](https://asset.fujifilm.com/www/my/files/2020-08/41976e0d478c59b497e38769022d513f/fig_eg760r_pic3.png)

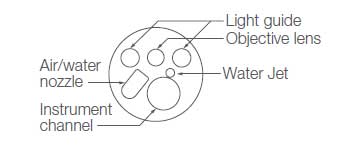

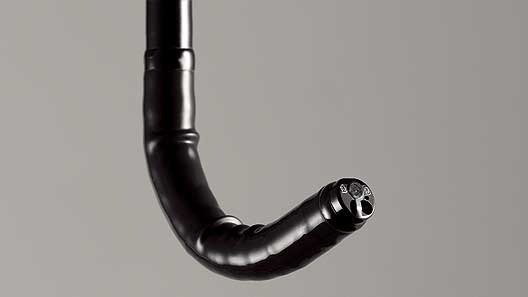

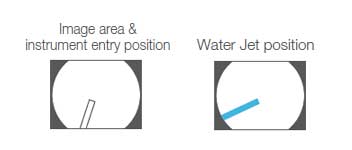

EG-760Z
![](https://asset.fujifilm.com/www/my/files/2020-08/17d2158da3b5e038ba4107bb461ff7fd/eg760g_pic1.png)
- Viewing direction
0°(Forward)
- Field of view
Normal: 140°
Closest: 56°- Observation range
1.5-100 mm
Normal: 3-100 mm
Closest: 1.5-2.5 mm
- Distal end diameter
9.9 mm
- Insertion tube diameter
9.8 mm
- Minimum diameter of instrument channel
2.8 mm

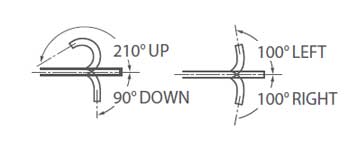

- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400 mm
- Water Jet
Available
- Product name: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
![](https://asset.fujifilm.com/www/my/files/2020-08/2228ca047de74fbd6015d9c2a146a6ad/fig_eg760z_pic1.png)
![](https://asset.fujifilm.com/www/my/files/2020-08/8f976c7b433af6275af4f28677889575/fig_gastroscopes_02.jpg)
![](https://asset.fujifilm.com/www/my/files/2020-08/74051518d01f7111e3f967c5279d8d83/fig_eg760r_pic3.png)

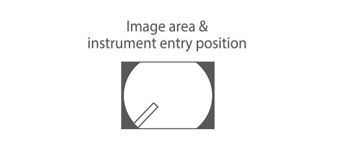

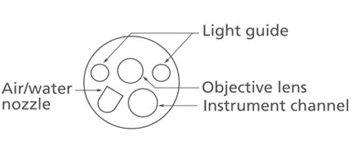

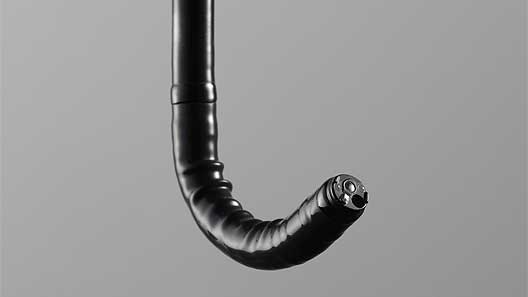

EG-720R
![](https://asset.fujifilm.com/www/my/files/2020-08/17a8d54d1f309f575a58ee87d3458732/eg720r_pic1.png)
- Viewing direction
0° (Forward)
- Field of view
140°
- Observation range
2-100 mm
- Distal end diameter
9.2 mm
- Insertion tube diameter
9.3 mm
- Minimum diameter of instrument channel
2.8 mm

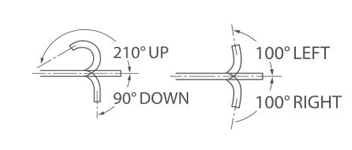

- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400 mm
- Product name: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
![](https://asset.fujifilm.com/www/my/files/2020-08/9284b1b72d299a560048a1e56b4a0666/fig_eg720r_pic1.png)
![](https://asset.fujifilm.com/www/my/files/2020-08/961eab3143f5fe9bd690f187f704993c/fig_gastroscopes_02.jpg)
![](https://asset.fujifilm.com/www/my/files/2020-08/6e66f4d2bf4d566f3b6574947d0fe5ab/fig_eg720r_pic3.png)

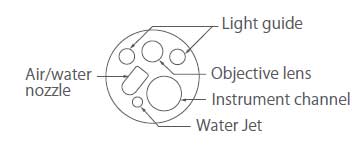

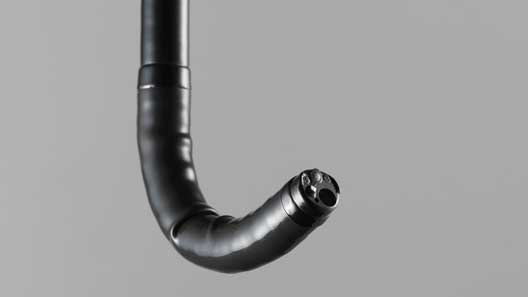

EG-760CT
![](https://asset.fujifilm.com/www/my/files/2020-08/6e6ab6d34fc7d9e48f99f3bca702a84f/eg760ct_pic1.png)
![](https://asset.fujifilm.com/www/my/files/2020-08/08a8d3f669d990fbd072770d42fda9f4/eg760ct_pic2.png)
- Viewing direction
0°(Forward)
- Field of view
140°
- Observation range
2-100 mm
- Distal end diameter
10.5 mm
- Insertion tube diameter
10.8 mm
- Minimum diameter of instrument channel
3.8 mm

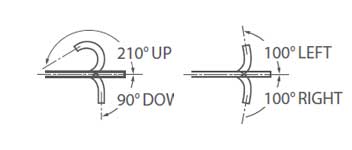

- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400 mm
- Water Jet
Available
- Product name: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
![](https://asset.fujifilm.com/www/my/files/2020-08/050b519d36ed61a1e078a68150092ad6/fig_eg760ct_pic1.png)
![](https://asset.fujifilm.com/www/my/files/2020-08/218d339e7d3beab7caae286561de2801/fig_gastroscopes_02.jpg)
![](https://asset.fujifilm.com/www/my/files/2020-08/a2d49ceee850ad05c3f2c77fef131e6b/fig_eg760ct_pic2.png)

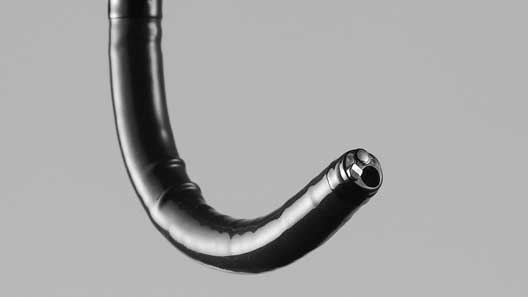

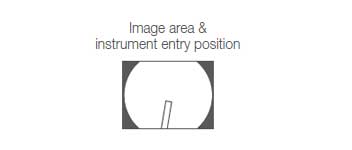

EG-740N
![](https://asset.fujifilm.com/www/my/files/2020-08/de15ac8c82b7c661c4170da241928b4c/eg740n_pic1.png)
![](https://asset.fujifilm.com/www/my/files/2020-08/7299c2afde2d6fe9434ed17ecb5639a2/eg740n_pic2.png)
- Viewing direction
0°(Forward)
- Field of view
140°
- Observation range
3-100 mm
- Distal end diameter
5.8 mm
- Insertion tube diameter
5.9 mm
- Minimum diameter of instrument channel
2.4 mm

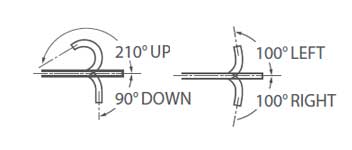

- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400 mm
- Water Jet
Unavailable
- Product name: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
![](https://asset.fujifilm.com/www/my/files/2020-08/927e5bd5e03e5f3c78699f1ac25531db/fig_eg740n_pic1.png)
![](https://asset.fujifilm.com/www/my/files/2020-08/ccff74012943b4053b0502163f7f6ef6/fig_gastroscopes_02.jpg)
![](https://asset.fujifilm.com/www/my/files/2020-08/884764154980ecf143514a6e8e7a0fbb/fig_eg740n_pic2.png)
EG-530WR
![](https://asset.fujifilm.com/www/my/files/2020-08/df2ebd8119dc31d54f4a7310012b9093/eg530wr_pic1.png)
- Viewing direction
0°(Forward)
- Field of view
140°
- Observation range
4-100 mm
- Distal end diameter
9.4 mm
- Insertion tube diameter
9.3 mm
- Minimum diameter of instrument channel
2.8 mm
- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400 mm
- Water Jet
Unavailable
![](https://asset.fujifilm.com/www/my/files/2020-08/bd75355bf735f04b472bf3c900261c75/fig_eg530wr_pic1.png)
![](https://asset.fujifilm.com/www/my/files/2020-08/5cf1e19957b8f867d3761cffa97d3bad/fig_gastroscopes_02.jpg)
![](https://asset.fujifilm.com/www/my/files/2020-08/189f6a96d1275a7a464cd330906b343f/fig_eg530wr_pic3.png)
EG-530CT
![](https://asset.fujifilm.com/www/my/files/2020-08/6fd0d5cd71c3f1849f9dd09cb209056c/eg530ct_pic1.png)
- Viewing direction
0°(Forward)
- Field of view
140°
- Observation range
3-100 mm
- Distal end diameter
10.8 mm
- Insertion tube diameter
10.8 mm
- Minimum diameter of instrument channel
3.8 mm
- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400 mm
- Water Jet
Available
![](https://asset.fujifilm.com/www/my/files/2020-08/08e57a1d6805b03bfc5a2d3c3a6d5c19/fig_eg530ct_pic1.png)
![](https://asset.fujifilm.com/www/my/files/2020-08/3d5b53a6e4065d8abe80afa01ba88e42/fig_gastroscopes_02.jpg)
![](https://asset.fujifilm.com/www/my/files/2020-08/981161dabb96825af9cf0711d43decd5/fig_eg530ct_pic3.png)
