HF-SA Series - Overview

NEW
Lens Selector Contact Us

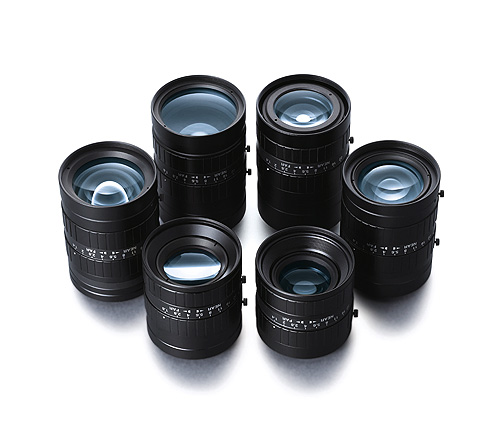

High resolution lenses

HF-SA series specification sheet

Model Compatible format sizes Focal length
(mm)
4/3 1.1 1 1/1.2 2/3 1/1.8 1/2 1/3
HF12.5SA-1 － － － － ● ● ● ● 12.5
HF16SA-1 － － － － ● ● ● ● 16
HF25SA-1 － － － － ● ● ● ● 25
HF35SA-1 － － － － ● ● ● ● 35
HF50SA-1 － － － － ● ● ● ● 50
HF75SA-1 － － － － ● ● ● ● 75

● Compatible sensor size (std.): Ideal size to maximize the target resolution.

Main features

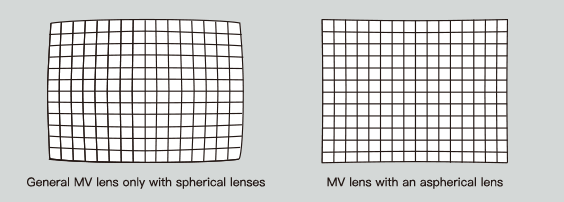

  • * Simulated image
High performance in close-up shooting

The rear focusing method*1 enables high performance even in close-up shooting.

  • *1 HF12.5SA-1 and HF16SA-1
Low F-number

The low F-number up to F1.4 ensures a clear image even in low light situations.

Enough peripheral light amount

Enough light is captured even at the edges of the image, which contributes to stable inspection accuracy.

Lineups
Focal length [mm]12.5
Iris range (F. no)F1.4-F22
Angle of view38.0°x 29.0° (2/3")
Working Distance*2 (mm)∞‐100
Operation of focusManual
Operation of irisManual
Filter thread [mm]M49 x 0.75
MountC-mount
Weight (approx.) [g]295
Sensor size (max.)2/3"
TV distortion [%]-0.08
Dimension [mm]Φ51×68.5
Focal length [mm]16
Iris range (F. no)F1.4-F22
Angle of view30.2°x 22.9° (2/3")
Working Distance*2 (mm)∞‐100
Operation of focusManual
Operation of irisManual
Filter thread [mm]M49 x 0.75
MountC-mount
Weight (approx.) [g]285
Sensor size (max.)2/3"
TV distortion [%]0.11
Dimension [mm]Φ51×70.5
Focal length [mm]25
Iris range (F. no)F1.4-F22
Angle of view20.8°x 15.7° (2/3")
Working Distance*2 (mm)∞-100
Operation of focusManual
Operation of irisManual
Filter thread [mm]M49 x 0.75
MountC-mount
Weight (approx.) [g]315
Sensor size (max.)2/3"
TV distortion [%]-0.06
Dimension [mm]Φ51×75.5
Focal length [mm]35
Iris range (F. no)F1.4-F22
Angle of view14.0°x 10.5° (2/3")
Working Distance*2 (mm)∞-200
Operation of focusManual
Operation of irisManual
Filter thread [mm]M49 x 0.75
MountC-mount
Weight (approx.) [g]185
Sensor size (max.)2/3"
TV distortion [%]0.07
Dimension [mm]Φ51×48.5
Focal length [mm]50
Iris range (F. no)F1.8-F22
Angle of view9.7°x 7.3° (2/3")
Working Distance*2 (mm)∞-400
Operation of focusManual
Operation of irisManual
Filter thread [mm]M49 x 0.75
MountC-mount
Weight (approx.) [g]240
Sensor size (max.)2/3"
TV distortion [%]0.08
Dimension [mm]Φ51×55.5



  • *2 From front of lens barrel
Focal length [mm]75
Iris range (F. no)F1.8-F22
Angle of view6.7°x 5.0° (2/3")
Working Distance*2 (mm)∞-900
Operation of focusManual
Operation of irisManual
Filter thread [mm]M49 x 0.75
MountC-mount
Weight (approx.) [g]305
Sensor size (max.)2/3"
TV distortion [%]0.01
Dimension [mm]Φ51×76
