[photo] Digital Focus Demand accessory EPD-41A-D01/ D02

Portable Lenses Accessories

NEW

Fujifilm offers a large variety of Portable Lenses Accessories which expand the capabilities of FUJINON TV lenses.

Contact Us

ENG/EFP Portable Lens System Configuration

Full-Servo Control Kit (Servo Focus/ Servo Zoom）

SS-13B

[image] Schematic of lens connecting to Focus Position Demand Unit and Zoom Rate Demand Unit

RD/ ZD , STANDARD

SS-15D

[image] Schematic of lens connecting to Focus Position Demand Unit and Zoom Rate Demand Unit

RD/ ZD , DIGIPOWER

Semi-Servo Control Kit （Manual Focus/ Servo Zoom）

MS-13B

[image] Schematic of lens connecting to Focus Manual Module and Focus Manual Grip and Zoom Rate Demand Unit

RM/ZM , STANDARD

MS-15D

[image] Schematic of lens connecting to Focus Manual Module and Focus Grip and Zoom Rate Demand Unit

RM/ZM , DIGIPOWER

Control Accessories Compatibility (Premier Series, Select Series and Broadcast Lenses)

Category Description Model Name
Focus Manual Focus Grip CFH-47
Mounting Clamp MCA-37
Flexible Cable CFC-12-990
Focus Manual Module FMM-6B
  FMM-3D (for 46x series, 42x series)
Servo Digital Focus Position Demand Unit EPD-41A-D01 / D02
Mounting Clamp MCA-37
Focus Position Demand Unit EPD-21A-A02
Digital Shot Box ESB-6C-E12B
Mounting Clamp MCA-06BC
Zoom Servo Digital Zoom Rate Demand Unit ERD-40A-D01
Mounting Clamp MCA-37
Zoom Rate Demand Unit ERD-20A-A02
Other VTR Contorl Unit VRS-20
Return Control Unit EXT-30
Lens Supporter ALH-127A-01A ( for 46x series,for 42x series)
External OS-TECH Adapter TS-P58A (HA14,HA18,HA23,HA25,HA42）
OS-TECH Control Unit EA-12A-03BA
Extention Cable For Focus Position
Demand Unit/Zoom Rate Demand Unit		 ECE-1000 (1m) / -10000 (10m)
2x Extender Change Unit (Motor Drive) ECU-2C
ECU Adapter(for UA13x/UA24x with RBF/HP12x) ECU-2AD

Digital  Zoom Demand

ERD-40A-D01

[photo] Digital Zoom Demand zoom speed, LEDs for auxiliaries, and torque adjustment
[photo] Digital Zoom Demand zoom direction, auxiliary 1 and RET 1 & 2
Item  DIP No. Function
AUX1 1-1 OIS(Alternate)
1-2 Preset Zoom
1-3 Preset Z+F
1-4 EXT
1-5 INCOM(ENG)
1-6 INCOM(PD)
Zoom Mode
Switch		 1-7 Z curve select
1-8 Z curve select
RET2/AUX SEL 2-1 RET2 ⇔ AUX2
RET1 2-2 ON/OFF
RET2 2-3 ON/OFF
AUX2 2-4 VTR(REC)
2-5 EXT
2-6 INCOM(ENG)
2-7 INCOM(PD)
2-8 OIS(Alternate)

Digital Focus Demand

EPD-41A-D01/ D02

[photo] Digital Focus Demand Indicator lights, auxiliary 1 & 2, and torque adjustment
[photo] Digital Focus Demand DIP switch, focus direction, and focus mode switch
Item DIP No. Function
AUX1 1 RET1
2 AUX1 ⇔ AUX2
AUX2 3 RET2
4 OIS
5 PRESET

eXceed Series System Configuration

MS-01

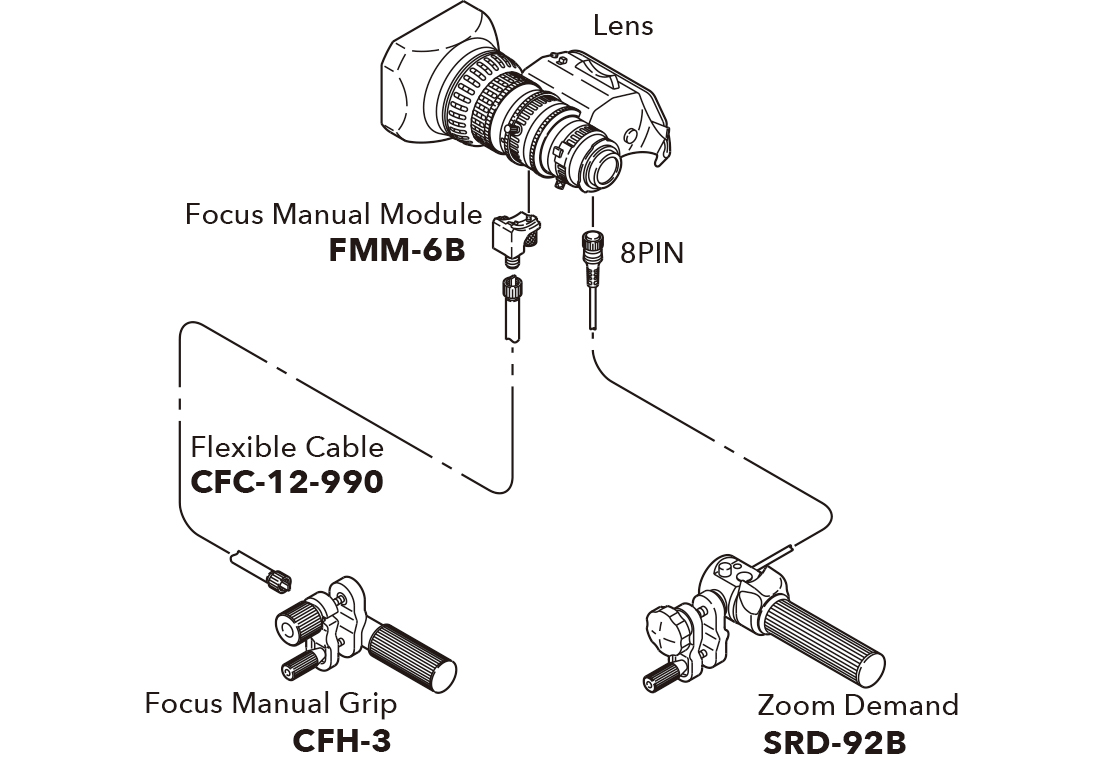

[image] Schematic of lens connecting to Focus Manual Module, Focus Manual Grip, and Zoom Demand

RM

SS-01

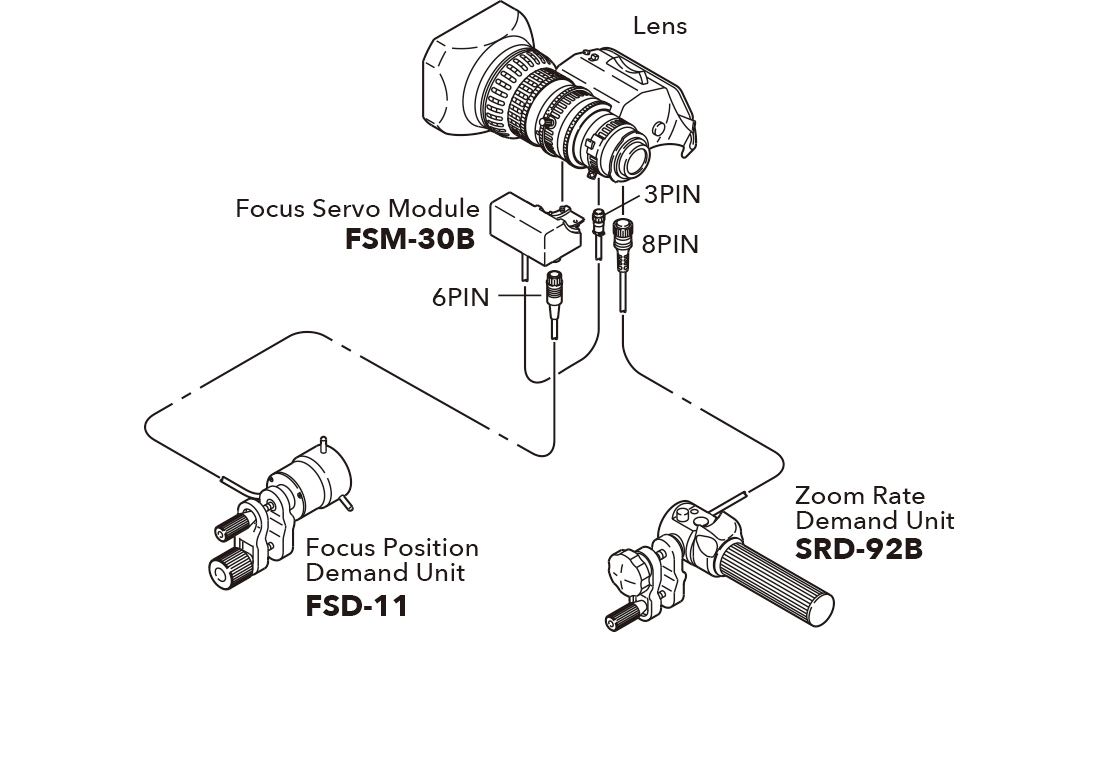

[image] Schematic of lens connecting to Focus Servo Module, Focus Position Demand Unit, and Zoom Rate Demand Unit

RM

Control Accessories Compatibility

Category Description Model Name

RM
Standard
Focus Manual Focus Grip CFH-3 ●
Flexible Cable  CFC-12-990 ●
Focus Manual Module  FMM-6B ●
Servo Focus Servo Module FSM-30B ●
Focus Position Demand Unit FSD-11 ●
Zoom Servo Zoom Rate Demand Unit SRD-92B ●
Other VTR Control Unit  VRS-2
For 12PIN Lens Cable ECE-R22
