FlushKnife BTs/FlushKnife Ns - Overview

An ESD treatment device  with  increased suction capability, and improved maneuverability.

The content on this page is intended to healthcare professionals and equivalents.

FlushKnife with thinner sheath supports more efficient procedures.

[photo] FlushKnife BT-S next to FlushKnife BT with improved shape of sheath tip

Increased suction capability

[image] Bar graph of FlushKnife BT-S/N-S 2.7-fold increased suction power compared to conventional type

With thinner sheath, the space between the instrument channel and FlushKnife is enlarged. It enables increased suction performance while stabilizing the sheath.

Smaller bending radius

[photo] Two endoscope distal ends bent in upward position, one with FlushKnife capable of smaller bending radius

By adopting thinner sheath and more flexible material, slim type FlushKnife is capable of bending more acutely.

Smoother scope insertion

[image] Bar graph of FlushKnife BT-S/N-S with 20% decreased resistance during insertion into scope, compared to conventional type

Resistance during scope insertions is reduced by enhanced flexibility and thinner sheath. Less kinking is likely to reduce stress on physicians.

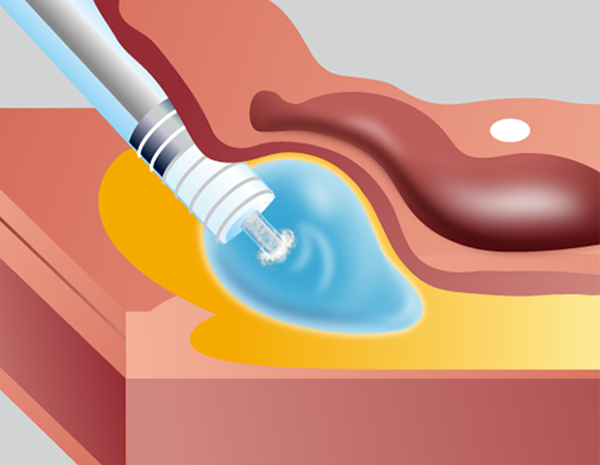

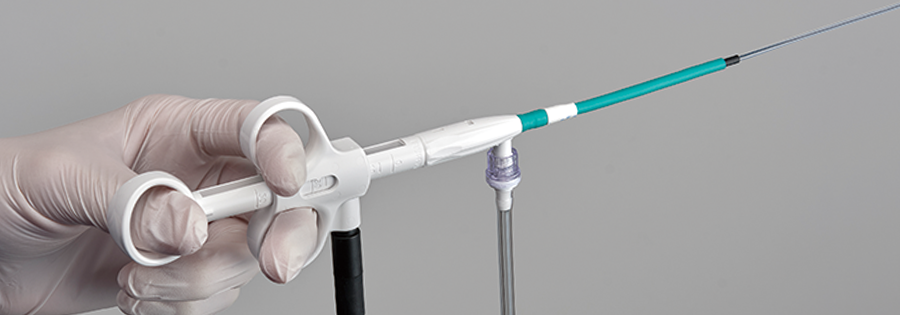

Effective water jet function

[image] FlushKnife with water jet spraying out of space between sheath and knife

Even with thinner sheath, water jet function is  same as conventional type, and the knife maintains its sharpness throughout the procedure.

Tip design to enhance ESD efficiency

Design of knife

[logo] FlushKnife BTS

FlushKnife BT-S has a ball tip, which produces good traction, enabling the target tissue to be dissected smoothly. The ball tip touches wider range of tissue and supports effective coagulation.

[photo] Tip of FlushKnife BT-S, with ball-tip knife
[logo] FlushKnife NS

FlushKnife N-S has a slim needle-shaped tip.
It provides stronger dissection capability by high current density and enables sharp marking.

[photo] FlushKnife tip with slim, needle-shaped tip knife

Tip of sheath

[image] Tip of sheath measurement and FlushKnife doing dissection in submucosal layer of tissue, with distal end of sheath serving as stopper to prevent damage

Product lineup

More efficient treatment is achieved by selecting suitable model for each legion.

FlushKnife BT-S
[photo] Row of four FlushKnife BT-S tips, going from left to right with 1.5mm, 2.0mm, 2.5mm, and 3.0mm
FlushKnife N-S
[photo] Row of five FlushKnife N-S tips, going from left to right with 1.0mm, 1.5mm, 2.0mm, 2.5mm, and 3.0mm

2000mm and 2300mm working length

Two types of working length allow combination with a variety of endoscopes. It supports ample distance between physician and assistant.

Easier identification

[photo] FlushKnife handle with letter S inscribed on handle

The handle inscribed with “S” helps medical staffs to identify this model from others.

  • * Specifications and appearance of products are subject to change without notice.
  • * Language of indications on products varies by country and region.
  • * Products comply with regulations of the country or region where they are marketed.
