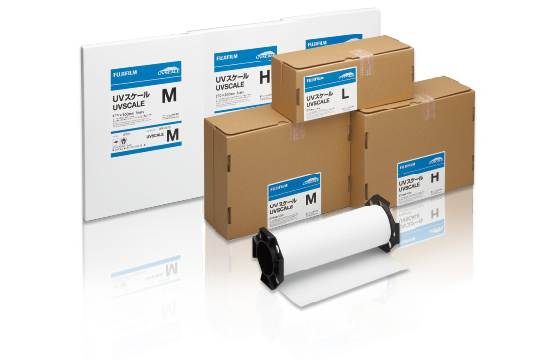

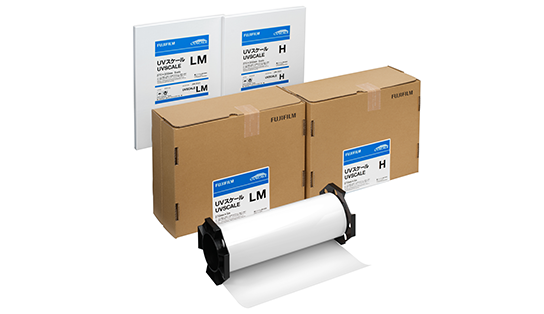

UVSCALE is a film that responds to UV light, and changes color depending on the amount of light it is exposed. This makes it easy to see UV light distribution. There are a roll type and a sheet type, with three types for different amounts of light.
| Type | Product size | Light Level | Light reduction film | Thickness | |
|---|---|---|---|---|---|
| Roll type (width × length) |
Sheet type (height × width) |
||||
| UVSCALE LM | 270mm×5m | 270mm×200mm （5 sheets） |
Low(UVSCALE L) | Non-use | 0.1mm |
| Medium(UVSCALE M) | use | 0.1mm×2 | |||
| UVSCALE H | High(UVSCALE H) | use | 0.1mm×2 | ||
| Measurable lamp | Type | Light Level | Effective light amount measurement range*1(mJ/cm2) |
|---|---|---|---|
| High-pressure mercury lamp | UVSCALE LM | Low | 4-200 |
| Medium | 50-2000 | ||
| UVSCALE H | High | 800-40000 | |
| Metal hallde lamp | UVSCALE LM | Low | 6-200 |
| Medium | 30-1000 | ||
| UVSCALE H | High | 700-20000 | |
| Low-pressure mercury lamp | UVSCALE LM | Low | 20-3000 |
| UV-LED lamp(365nm) | UVSCALE LM | Low | 200-6000 |
| Medium | 300-7000 | ||
| UVSCALE H | High | 5000-100000 |
- * Applies to wavelengths in the 200 to 420 nm range
- * This does not guarantee the absolute values of UV light values.
- *1 The measurement ranges mentioned above are for when FUD-7010E is used. The amount of light range that can be visually checked is the density on standard color samples (0.30 to 0.75).

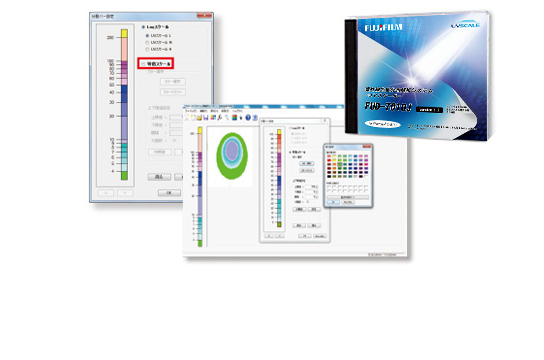

In this system, exclusive analysis software is used along with a special scanner. The system makes it possible to scan the color of UVSCALE, convert it into UV light values, analyze UV light distribution, and save them.
The separation accuracy of the densities can be improved so sections that cannot be judged visually can be analyzed. Managing numerical data can have the following advantages:Internal inspection standards can be set. Analysis results can be shared. Digitizing data makes it possible to compare it to past data.
- Product name/Model
FUJIFILM UV LIGHT DISTRIBUTION MAPPING SYSTEM for UVSCALE
FUD-7010E Ver. 1.3- Components
Dedicated software (CD-ROM), Dedicated cover, Calibration sheet
- Main functions
Analyzing UVSCALE images (measuring amount of accumulated light, displaying light distribution, saving data, CSV data export)
- Measurable UV lamp
High-pressure mercury lamp, metal halide lamp, low-pressure mercury lamp, UV-LED (365 nm)
- Applicable scanner
Epson A4 Scanner: Perfection V37/V370 , Perfection V60
- Resolution
0.125mm（200dpi）, 0.032mm（800dpi）
- System requirements
Windows 7, 8, 8.1, 10 (32/64 bit), CPU 2 GHz or higher, Memory 2 GB or more, Disk space 2 GB or more,
Display 1024 x 768 60,000 colors or more
Please see the "Product page" for detailed information on functionality, usage, maintenance/repair service, etc. of FUD-7010E. You can also download trial versions and update to the latest version of the products from this web page.
