Main Specifications

Model name: FP-Z5000-B (Black)
FP-Z5000-W (White)
DLP chip: Size: 0.65-inch, 16:9 aspect ratio
Display method: 1Chip DLP
Resolution: 2,073,600 pixel（1920×1080）
Lens: Type: Folded two-axial rotatable lens
Shift: Electrical: Vertical ±82%, Horizontal ±35%
Zoom: Electrical: x1.0 - x1.1
Throw ratio(TR)^*1: 0.34 (Wide) - 0.37 (Telephoto)
Focal length：f=5.0mm (Wide)- 5.5mm (Telephoto)
F No.: F2.4 (Wide) - F2.49 (Telephoto)
Keystone correction range: Vertical ±5°/ Horizontal ±5°
Light source: Laser diode
Brightnes [ANSI Im^*2]: 5,000lm
Light output half time^*3: Up to about 20000 hours
Contrast ratio^*4: 12,000:1
Projected image size: 70-300 inches
Speaker: 10W × 1
Maximum display resolution (WxH): 1920 × 1080
Video IN terminals: ① HDMI 1 IN　HDMI 1.4 (Compatible with HDCP 1.4)
② HDMI 2 IN　HDMI 1.4 (Compatible with HDCP 1.4)
③ HDMI 3 IN　HDMI 1.4 (Compatible with HDCP 1.4)
④ HDBaseT IN^*5　 RJ-45 for video/audio
Control IN/OUT terminals: ⑤ LAN^*5　RJ-45 for network connection (10BASE-T/100Base-TX)
Audio IN/OUT terminals: -
Other: ⑥ USB 1　Type A, DC5V
⑦ USB 2　miniB for maintenance
Warping / Edge blending function: -
Power supply: AC 100-240V 50/60Hz
Power consumption: 700W Normal: 550W, Eco: 380W
Power consumption (during standby): Approx.0.5W, Network standby Approx.3.0W
Dimensions: 470mm (W) × 375mm (D) × 108mm (H) (excluding adjustable feet)
Weight: Approx.12.5 kg (27.6 lb)
Noise level^*6: Normal: 46dM, Eco: 40dB
Operating temperature: 0-40℃ (32-104℉)
Accessories included: Power cord 3.0m (9.8ft)
HDMI cable 1.8m (5.9ft)
Lens cap
Vertical installation stand (2 pcs)
Remote control
Remote control battery (AAA type ×2)
Basic manual

*1 The "throw ratio" (TR) is the ratio of throw distance to screen width.
*2 The average value for this model at shipment, according to ANSI standards.
*3 The estimated time taken for brightness to drop by half. Varies with the operating environment and conditions of use.
*4 Assumes that "dynamic contrast" (FP-Z8000) or "dynamic black" (FP-Z5000) is on.
*5 The FP-Z5000 is equipped with a single RJ-45 connector and does not support simultaneous HDBaseT and Ethernet connections.
*6 The average value for this model at shipment.

* Optional accessories: ceiling mount, dedicated storage case
* The projectors are Class 1 laser products. Do not look directly into the beam.
* PJ Link is a trademark registered in Japan, the United States, and other countries.
* HDBaseT, the HDBaseT logo, and the HDBaseT Alliance are trademarks in Japan and other countries.
* DLP and the DLP logo are registered trademarks of Texas Instruments.
* HDMI is a trademark or registered trademark of HDMI Licensing LLC in the United States and other countries.
* Crestron, Crestron RoomView, Crestron Conneted, and the Crestron Connected logo are registered trademarks of Crestron Electronics, Inc. in the United States.

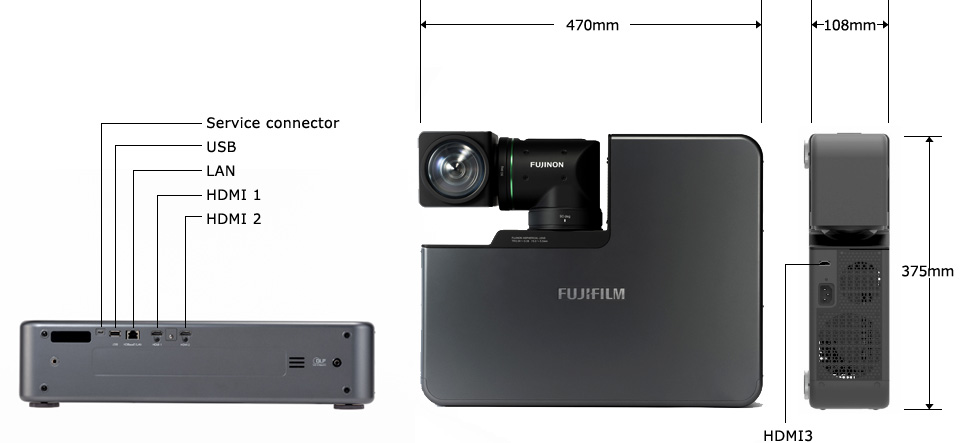

Dimension

Interface Connectors

External Dimensions

* Product specifications and appearance are subject to change without advance notice.

Projection Distance

[image] Schematic of Horizontal Projection Range depending on position in room

[image] Schematic of highest and lowest lens shift

■Table of Horizontal Projection Distances

【Aspect Ratio 16: 9】

16:9　Screen				① Projection distance (cm)			② Lens shift (cm)
Size (inches)	Width (cm)	×	Height (cm)	Wide	-	Tele	Lowest	-	Highest
70	155	×	87	52	-	57	-115	-	28
80	177	×	100	59	-	65	-131	-	32
90	199	×	112	67	-	74	-148	-	36
100	221	×	125	75	-	82	-164	-	40
120	266	×	149	90	-	99	-197	-	48
150	332	×	187	113	-	124	-247	-	60
200	443	×	249	151	-	166	-329	-	80
250	553	×	311	189	-	208	-411	-	100
300	664	×	374	227	-	250	-493	-	120

【Aspect Ratio 16: 10】

16:10　Screen				① Projection distance (cm)			② Lens shift (cm)
Size (inches)	Width (cm)	×	Height (cm)	Wide	-	Tele	Lowest	-	Highest
70	151	×	85	56	-	62	-112	-	27
80	172	×	97	64	-	71	-128	-	31
90	194	×	109	72	-	80	-144	-	35
100	215	×	121	81	-	89	-160	-	39
120	258	×	145	97	-	107	-192	-	47
150	323	×	182	122	-	134	-240	-	58
200	431	×	242	163	-	179	-320	-	78
250	538	×	303	204	-	225	-400	-	97
300	646	×	363	245	-	270	-480	-	116

【Aspect Ratio 4: 3】

4:3　Screen				① Projection distance (cm)			② Lens shift (cm)
Size (inches)	Width (cm)	×	Height (cm)	Wide	-	Tele	Lowest	-	Highest
60	122	×	91	54	-	60	-121	-	29
70	142	×	107	64	-	70	-141	-	34
80	163	×	122	73	-	80	-161	-	39
90	183	×	137	82	-	91	-181	-	44
100	203	×	152	92	-	101	-201	-	49
120	244	×	183	110	-	121	-241	-	59
150	305	×	229	138	-	152	-302	-	73
200	406	×	305	185	-	203	-402	-	98
240	488	×	366	222	-	244	-483	-	117

[image] Schematic of Vertical Projection Range dependent on center of lens in room

■Table of Vertical Projection Distance

【Aspect Ratio 16: 9】

16:9　Screen				① Projection distance (cm)			② Lens shift (cm)
Size (inches)	Width (cm)	×	Height (cm)	Wide	-	Tele	Lowest	-	Highest
70	87	×	155	52	-	57	-132	-	-23
80	100	×	177	59	-	65	-151	-	-27
90	112	×	199	67	-	74	-169	-	-30
100	125	×	221	75	-	82	-188	-	-33
120	149	×	266	90	-	99	-226	-	-40
150	187	×	332	113	-	124	-282	-	-50
200	249	×	443	151	-	166	-376	-	66
250	311	×	553	189	-	208	-470	-	-83
300	374	×	664	227	-	250	-565	-	-100

【Aspect Ratio 16: 10】

16:10　Screen				① Projection distance (cm)			② Lens shift (cm)
Size (inches)	Width (cm)	×	Height (cm)	Wide	-	Tele	Lowest	-	Highest
70	85	×	151	56	-	62	-134	-	-17
80	97	×	172	64	-	71	-153	-	-19
90	109	×	194	72	-	80	-172	-	-22
100	121	×	215	81	-	89	-191	-	-24
120	145	×	258	97	-	107	-230	-	-29
150	182	×	323	122	-	134	-287	-	36
200	242	×	431	163	-	179	-383	-	-48
250	303	×	538	204	-	225	-479	-	-60
300	363	×	646	245	-	270	-574	-	-72

【Aspect Ratio 4: 3】

4:3　Screen				① Projection distance (cm)			② Lens shift (cm)
Size (inches)	Width (cm)	×	Height (cm)	Wide	-	Tele	Lowest	-	Highest
60	91	×	122	54	-	60	-118	-	-4
70	107	×	142	64	-	70	-137	-	-5
80	122	×	163	73	-	80	-157	-	-5
90	137	×	183	82	-	91	-177	-	-6
100	152	×	203	92	-	101	-196	-	-7
120	183	×	244	110	-	121	-236	-	-8
150	229	×	305	138	-	152	-295	-	-10
200	305	×	406	185	-	203	-393	-	-14
240	366	×	488	222	-	244	-471	-	-16

_{＊refers to % difference between the approximate calculation and the numbers in the above table.}

Supported resolutions

HDMI

Resolution	Signal	Refresh rate (Hz)
VGA	640x480	60
SVGA	800x600	60
XGA	1024x768	60
WXGA	1280x768	60
	1280x800	60
	1366x768	60
SXGA	1280x960	60
SXGA	1280x1024	60
SXGA+	1400x1050	60
WXGA+	1440x900	60
WSXGA+	1680x1050	60
UXGA	1600x1200	60
WUXGA	1920x1200	60
SDTV(480i)	720x480	60
SDTV(480p)	720x480	60
SDTV(576i)	720x576	50
SDTV(576p)	720x576	50
HDTV(720p)	1280x720	60/50
HDTV(1080i)	1920X1080	60/50
HDTV(1080p)	1920x1080	60/50

Projection simulator

You can calculate and simulate the image size of projection
and projection distance with our projection simulator.
Try the features of FP-Z5000＆FP-Z8000 such as lens shift, lens rotation ,
horizontal/vertical projection, floor/ceiling installation and so on

Projection simulator
