The world's first electronic gyro stabilizing system for binoculars

The erect prism in the gimbal system is constantly stabilized when the electronic gyro sensor detects vibration, providing vibration correction at a wider range of angles than any other system.

[image] Arrow of light passing through binoculars and being corrected in gimbal section, even at an angle

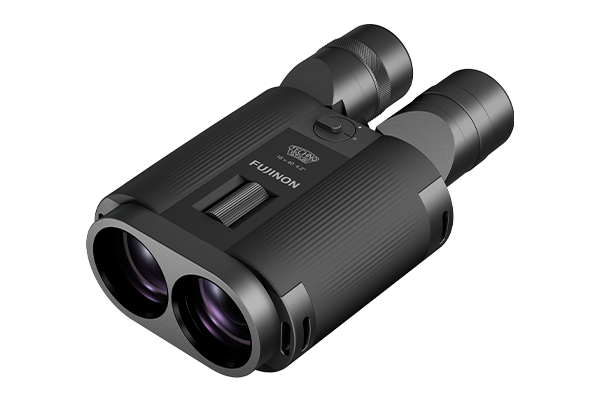

TS-X 1440 / TS-X 1440 Yellow / TS-X 1440 Navy

The TS-X comes with our strongest vibration-correction system for a steady view in bumpy conditions.

Class-Leading image stabilization* at ±6° Provides a stress-free experience in cars, boats, and other bumpy transportation.
The latest image stabilization system works at high magnification levels, making it easy to adjust the focus without losing sight of your target.
Enables a steady image at 14x magnification without a tripod - impossible in binoculars without vibration correction.
Waterproof and user-friendly design, making these binoculars the perfect companion in a wide range of settings that include marine sports, safaris, professional fishing, and sailing.
*According to September 2019 research conducted by Fujifilm on vibration-correcting binoculars.

Specifications

Magnification: 14
Objective diameter (mm): 40
Field of view (°): 4
Apparent field of view (°) ^*1: 52.1
Field of view at 1000m (m): 70
Exit pupil: 2.9
Relative Brightness: 8.2
Eye relief (mm): 13
Minimum Focus Distance (m) ^*2: 5
Height (mm): 179.5
Width (mm): 165
Depth (mm): 81
Weight (g) (w/o Battery): 1,300
Adustment range for interpupillary distance (mm): 60-70
Dioptric adjustment range (±mm): ±2
Focus type: CF
Water resistant^*3: 1m-5min
Battery: AA×4 or Ni-MH×4
Operationg temperature: −10℃ - +50℃

Bundled item: Lens cap, eyepiece caps, case, strap and 4 AA alkaline batteries.

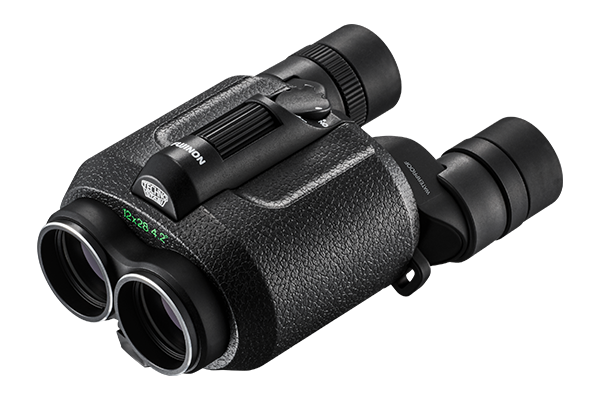

TS12×28

The TECHNO-STABI Compact series comes with a high magnification vibration correction feature, providing a steady image at 12x.

Compact and lightweight with a stabilization correction of ±3 degrees.
Ideal in a variety of settings, including concerts, theme parks, and bird-watching.
Stabilization activates with a shift switch, providing effortless control during prolonged use.
Provides sharp image at a high magnification without the use of a tripod.

Specifications

Magnification: 12
Objective diameter (mm): 28
Field of view (°): 4.2
Apparent field of view (°) ^*1: 47.5
Field of view at 1000m (m): 73
Exit pupil: 2.3
Relative Brightness: 5.4
Eye relief (mm): 16.5
Minimum Focus Distance (m) ^*2: 3.5
Height (mm): 148
Width (mm): 109
Depth (mm): 74
Weight (g) (w/o Battery): 485
Adustment range for interpupillary distance (mm): 55-70
Dioptric adjustment range (±mm): ±2
Focus type: CF
Water resistant^*3: -
Battery: CR2×1
Operationg temperature: −10℃ - +50℃

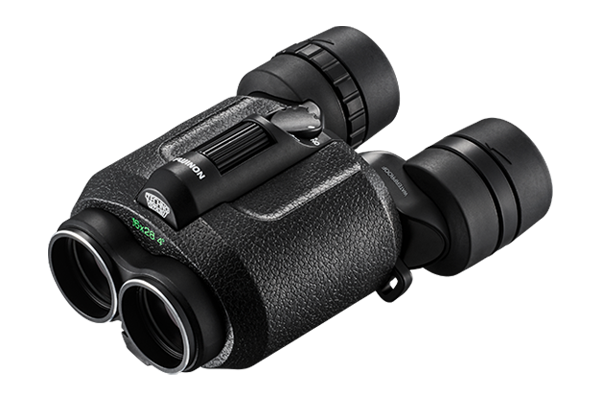

TS16×28

The TECHNO-STABI Compact series comes with a high magnification vibration correction feature, providing a steady image at 16x.

Compact and lightweight with a stabilization correction of ±3 degrees.
Ideal in a variety of settings, including concerts, theme parks, and bird-watching.
Stabilization activates with a shift switch, providing effortless control during prolonged use.
Provides sharp image at a high magnification without the use of a tripod.

Specifications

Magnification: 16
Objective diameter (mm): 28
Field of view (°): 4
Apparent field of view (°) ^*1: 58.4
Field of view at 1000m (m): 70
Exit pupil: 1.8
Relative Brightness: 3.1
Eye relief (mm): 16
Minimum Focus Distance (m) ^*2: 3.5
Height (mm): 151
Width (mm): 120
Depth (mm): 74
Weight (g) (w/o Battery): 550
Adustment range for interpupillary distance (mm): 55-70
Dioptric adjustment range (±mm): ±2
Focus type: CF
Water resistant^*3: -
Battery: CR2×1
Operationg temperature: −10℃ - +50℃

Bundled item: Eyepiece cap, soft-case, neckstrap and CR2 lithium battery.

*1 Apparent field of view based on ISO14132-1:2002
*2 MOD may differ depends on the viewer's sight in case of Indivisual focus.
*3 Do not mean it can be used in water.
