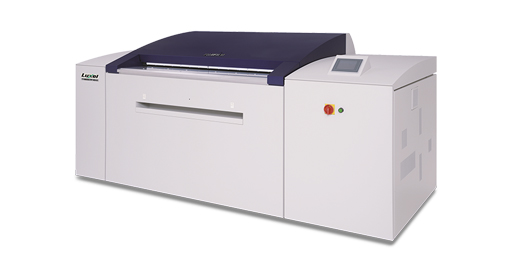

Luxel PLATESETTER

• Productivity options: from 36 to 70 plates per hour
• Full automation possible with single and multi-autoloader
• Uses GLV technology for best quality image output
• Improved data connection via Gigabit Ethernet
• Maximum plate size: 1165 x 950mm
• Online punch option:
  • Maximum 12 units with up to 6 sets of punches
• Three investment entry points:
  • Luxel T-9800CTP HD-NE: 36 plates per hour
  • Luxel T-9800CTP HD-NS: 48 plates per hour
  • Luxel T-9800CTP HD-NX: 70 plates per hour

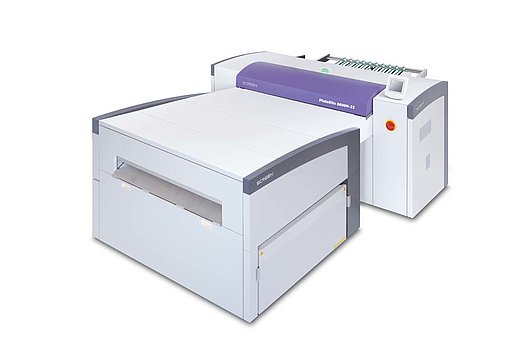

Auto-loader

Compatible with the Luxel T-9800CTP HD series of thermal platesetters, the Luxel T-9000AL HD autoloader offers automatic interleaf removal, with a cassette capacity of up to 100 plates.

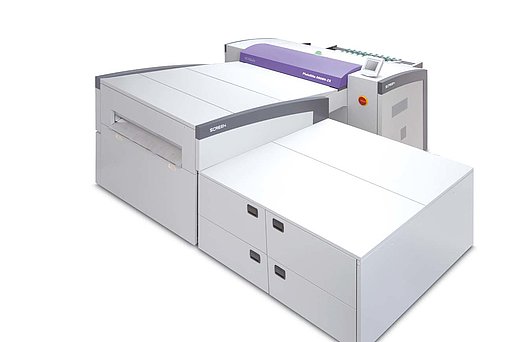

Multi Auto-loader

The Luxel T-9000ML HD multi-cassette autoloader is compatible with the Luxel T-9800CTP HD series of thermal platesetters. This model features automatic interleaf removal, with a maximum of 5 cassettes each holding up to 100 plates.

Pallet Loader

The new 8up Power Loader is compatible with the Luxel T-9800CTP HD series of thermal platesetters, improving productivity and reducing load time.

• Up to 33 x B1 plates per hour at 2400 dpi (T-9800CTP HD-E), 43 x B1 plates per hour at 2400 dpi (T-9800CTP HD-S) or 67 x B1 plates per hour at 2400 dpi (T-9800CTP HD-X)
• Maximum plate size of 1165 mm x 950 mm
• Suitable for use with Superia processless and low chemistry thermal plates

• High productivity: 23 - 30 pph at 2400dpi
• Manual plate loading; automatic unloading
• Consistent, high quality output
• Maximum plate size: 1060 x 830mm
• Economical, entry-level system
• Built-in bridge to processor as standard
• Robust and reliable

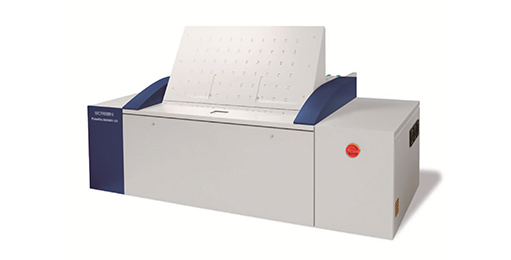

• Available in two models, the SA and the ZA

• Productivity up to 20 B1 plates per hour at 2400 dpi (MII -SA)
• Compatible with FUJIFILM Brilla HD PRO-T Processless plates
• Universal, compact design
• Equipment height enables easy operation

• Inline connection to plate processor
• Semi-automated CTP processing
• Universal, compact design
• Equipment height enables easy operation

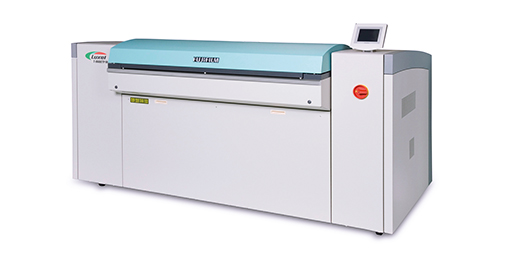

• Up to 14 x B1 plates per hour at 2400 dpi (T-9500CTP N) or 23 x B1 plates per hour at 2400 dpi (T-9500CTP NS & T-9500CTP NHS)
• Maximum plate size of 1160mm x 940mm
• Suitable for use with Superia processless and low chemistry thermal plates

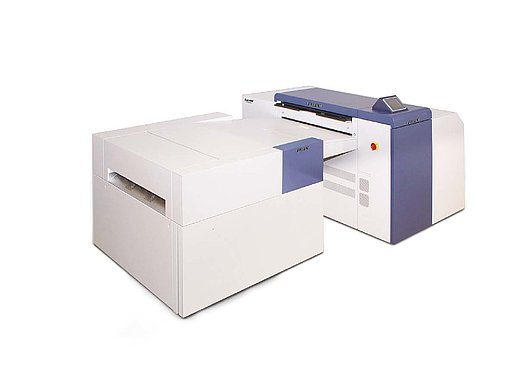

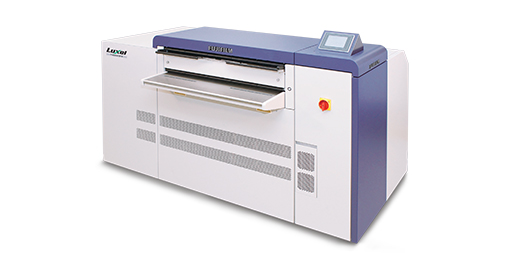

• Productivity options: from 11 to 33 plates per hour
• Full automation possible with single and multi autoloader
• Uses Fiber LD technology for higher quality image output
• Improved small plate size support
• Improved data connection via Gigabit Ethernet
• Maximum plate size: 830 x 660mm
• Online punch option: Maximum 6 units
• Three investment entry points:
  Luxel T-6500CTP E: 11 plates per hour
  Luxel T-6500CTP S: 21 plates per hour
  Luxel T-6500CTP X: 33 plates per hour

• Productivity options: from 11 to 33 plates per hour

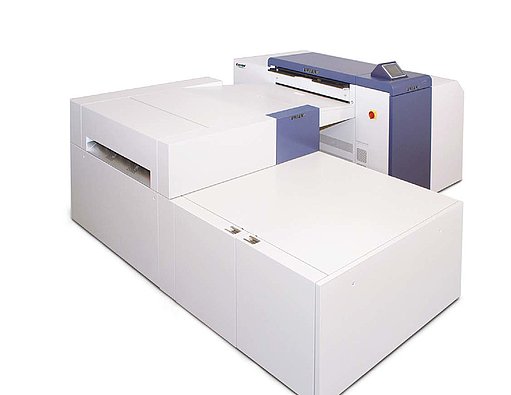

• Full automation possible with single and multi autoloader
• Uses Fiber LD technology for higher quality image output
• Improved small plate size support
• Improved data connection via Gigabit Ethernet
• Maximum plate size: 830 x 660mm
• Online punch option: Maximum 6 units
• Three investment entry points:
  Luxel T-6500CTP E: 11 plates per hour
  Luxel T-6500CTP S: 21 plates per hour
  Luxel T-6500CTP X: 33 plates per hour
