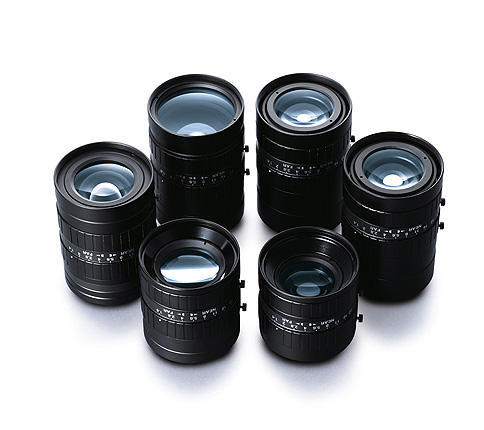

[photo] CF-HA Series lenses standing upright and grouped together in a circle

CF-HA Series - Overview

NEW

CF-HA series is compatible with large 1" image sensor cameras to realize high resolution up to 1.5 megapixels.

Lens Selector Support
High resolution lenses

CF-HA series specification sheet

Model Compatible format sizes Focal length
(mm)
4/3 1.1 1 1/1.2 2/3 1/1.8 1/2 1/3
CF12.5HA-1 － － ● ● ● ● ● ● 12.5
CF16HA-1 － － ● ● ● ● ● ● 16
CF25HA-1 － － ● ● ● ● ● ● 25
CF35HA-1 － － ● ● ● ● ● ● 35
CF50HA-1 － － ● ● ● ● ● ● 50
CF75HA-1 － － ● ● ● ● ● ● 75

● Compatible sensor size (std.): Ideal size to maximize the target resolution.

Main features
  • * Simulated image
High performance in close-up shooting

The rear focusing method*1 enables high performance even in close-up shooting.

  • *1 CF12.5HA-1 and CF16HA-1
Low F-number

The low F-number up to F1.4 ensures a clear image even in low light situations.

Enough peripheral light amount

Enough light is captured even at the edges of the image, which contributes to stable inspection accuracy.

Lineup
Focal length [mm]12.5
Iris range (F. no)F1.4-F22
Angle of view53.1°x 41.2° (1")
Working Distanc*2 (mm)∞‐100
Operation of focusManual
Operation of irisManual
Filter thread [mm]M49 x 0.75
MountC-mount
Weight (approx.) [g]290
Sensor size (std.)*31" (9.1μm)
Sensor size (max.)*41" (9.1μm)
TV distortion [%]0.86
Dimension [mm]Φ51×68.5
Focal length [mm]16
Iris range (F. no)F1.4-F22
Angle of view42.6°x 32.8° (1")
Working Distance*2 (mm)∞‐100
Operation of focusManual
Operation of irisManual
Filter thread [mm]M49 x 0.75
MountC-mount
Weight (approx.) [g]280
Sensor size (std.)*31" (9.1μm)
Sensor size (max.)*41" (9.1μm)
TV distortion [%]0.79
Dimension [mm]Φ51×70.5
Focal length [mm]25
Iris range (F. no)F1.4-F22
Angle of view29.9°x 22.7 (1")
Working Distance*2 (mm)∞-100
Operation of focusManual
Operation of irisManual
Filter thread [mm]M49 x 0.75
MountC-mount
Weight (approx.) [g]310
Sensor size (std.)*31" (9.1μm)
Sensor size (max.)*41" (9.1μm)
TV distortion [%]0.36
Dimension [mm]Φ51×75.5
Focal length [mm]35
Iris range (F. no)F1.4-F22
Angle of view20.3°x 15.3° (1")
Working Distance*2 (mm)∞-200
Operation of focusManual
Operation of irisManual
Filter thread [mm]M49 x 0.75
MountC-mount
Weight (approx.) [g]180
Sensor size (std.)*31" (9.1μm)
Sensor size (max.)*41" (9.1μm)
TV distortion [%]0.18
Dimension [mm]Φ51×48.5
Focal length [mm]50
Iris range (F. no)F1.8-F22
Angle of view14.1°x 10.6° (1")
Working Distance*2 (mm)∞-400
Operation of focusManual
Operation of irisManual
Filter thread [mm]M49 x 0.75
MountC-mount
Weight (approx.) [g]235
Sensor size (std.)*31" (9.1μm)
Sensor size (max.)*41" (9.1μm)
TV distortion [%]0.20
Dimension [mm]Φ51×55.5



  • *1 From front of lens barrel.
  • *2 Sensor size (std.): Ideal size to maximize the target resolution.
  • *3 Sensor size (max.): Adaptable sensor size varies depending on the model. Please check the amount of light and resolution on the edges pertaining to your particular application.
Focal length [mm]75
Iris range (F. no)F1.8-F22
Angle of view9.8°x 7.3° (1")
Working Distance*2 (mm)∞-900
Operation of focusManual
Operation of irisManual
Filter thread [mm]M49 x 0.75
MountC-mount
Weight (approx.) [g]300
Sensor size (std.)*31" (9.1μm)
Sensor size (max.)*41" (9.1μm)
TV distortion [%]0.01
Dimension [mm]Φ51×76
