Various Options Available According to Needs

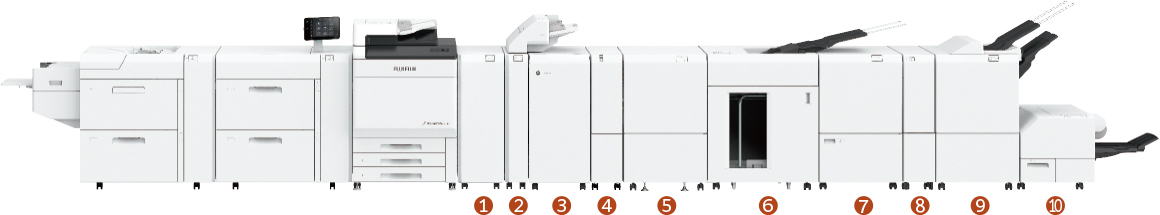

Full Configuration
Full Configuration W8,036 x D858 x H1,252 mm*1
- *1 Extension Kit and Extension Kit Extra are not included in height.
Feeding Options
One High Capacity Feeder Configuration
High Capacity Feeder C3-DS + Multi Sheet Inserter for Banner Print
- Air Assist
- Multifeed Detection
- 2,100 sheets x 2 trays + 250 sheets
- Maximum A3, 330 x 660 mm
Air Suction Feeder C1-DS*2
- Air Suction
- Multifeed Detection
- 2,200 sheets x 2 trays + 250 sheets
- Maximum A3, 330 x 660 mm
Air Suction Feeder C1-DSXL*2 + Banner Unit for Air Suction Feeder C1-DSXL
- Air Suction
- Multifeed Detection
- Long Sheets Feeding
- 900 sheets + 2,200 sheets + 250 sheets
- Maximum A3, 330 x 1,300 mm (Upper tray)
High Capacity Feeder B1*3
- A4 size
- 2,100 sheets x 1 tray
- Maximum A4
High Capacity Feeder B1-S+Multi Sheet Inserter for Banner Print
- Air Assist
- Multifeed Detection
- Cabinet
- 2,100 sheets x 1 tray + 250 sheets
- Maximum A3, 330 x 660 mm
Two High Capacity Feeder Configuration
High Capacity Feeder C3-DS + 2nd High Capacity FeederC1-DS + Multi Sheet Inserter for Banner Print
- Air Assist
- Multifeed Detection
- 2,100 sheets x 4 trays + 250 sheets
- Maximum A3, 330 x 660 mm
Chained Air Suction Feeder C1-DS-L*2 + C1-DS-R
- Air Suction
- Multifeed Detection
- 2,200 sheets x 4 trays + 250 sheets
- Maximum A3, 330 x 660 mm
Chained Air Suction Feeder
C1-DSXL-L*2 + C1-DS-R + Banner Unit for Air Suction Feeder C1-DSXL
- Air Suction
- Multifeed Detection
- Long Sheets Feeding
- 900 sheets + 2,200 sheets x 3 trays + 250 sheets
- Maximum A3, 330 x 1,300 mm (Left Upper tray)
- *2 Multi Sheet Inserter for Banner Print is equipped as standard.
- *3 Optional Multi Sheet Inserter for Banner Print is required separately. It is connected to printer directly.
Output Options
1) Interface Decurler Module D1
- Real Time Curl Correction
2) Inserter D1
- Cover / Sheet Insertion
3) Static Eliminator D1
- Eliminate Static Electricity
4) Smart Monitoring Gate D1
- Scanning Print pages
5) High Capacity Stacker A1
- 5000-sheet Offset-stacking
- Stacker cart
- Long Sheets Output*4
6) Crease / Two-sided Trimmer D2
- Two-Sided Trim
- Crease
7) Folder Unit CD2
- Z Fold Half Sheet
- Tri-fold
8) Finisher D6 with Booklet Maker
- Sort / Stack
- Staple
- Punch*4
- Single fold
- Saddle Staple
- Long sheets Output
Finisher D6
- Sort / Stack
- Staple
- Punch*4
- Long sheets Output
9) Square Back Fold Trimmer D1
- Face Trim
- Square Back
Folder Unit CD3
- Z Fold Half Sheet
- Tri-fold
Finisher-C5 / Finisher-C5 with Booklet Maker
- Sort / Stack
- Staple
- Staple-free Staple
- Punch
- Saddle Staple / Single Fold*5
Offset Catch Tray
- Offset Stack
Long Catch Tray
- Long Sheets Output
- *4 Optional
- *5 For Finisher-C5 with Booklet Maker.
Finishing Applications
Cover / Sheet Insertion
Punch
Staple-free Staple
Staple
Saddle Staple
Single Fold
Z Fold Half Sheet
Tri-Fold
Crease*6
Face Trim
Two-Sided Trim
Full Bleed Trim*7
Square Back
- *6 Up to 5 creases are possible for mountain fold and valley fold.
- *7 Full Bleed Trim is performed for Two-Sided Trim and Face Trim.
Print Servers
Revoria Flow SC21
Revoria Flow SC22
Fiery SC21
Fiery SC22C
