Revoria Press PC1120

6-colour print engine brings unrivaled expressive power to digital printing.

ApeosPro C810 / C750

Overview

  • Superior productivity with high-speed printing of 120 ppm even when printing in 6 colours.
  • High-definition expression with high-output resolution at 2.400 x 2.400 dpi.
  • High-performance print server that maximises print engine productivity.
  • Supports a broad range of stocks: 52 gsm lightweight paper, 400 gsm heavyweight paper, minimum 98 x 148 mm and up to 330 x 1.200 mm.
  • Various feeding and finishing options to streamline workflow from print to post-press.

Features

Achieves both image quality and productivity at a high level.

1 pass 6-colour print engine

In addition to CMYK toner, the press can load a maximum of two specialty toner stations. For specialty toner, choices of Clear*1, Gold, Silver, White, Pink and Custom Red*1*2 toners are available. By overlaying CMYK on Silver or Gold, you can print various brilliant metallic colours. The rich colour expressions created by the 6-colour print engine can expand your business.

  • *1: Clear and Custom Red toner can only be used for Overlay.
  • *2: Custom Red toner is available in limited countries.



  • Note: Users can swap the colours of the specialty toner unit faster and more easily than an offset press.



You can create a variety of metallic effects with Gold and Silver underlay.
PANTONE® and our unique pre-installed metallic colours are available.



Pink toner can create eye catching design with fluorescent pink.

Pink toner can make the colour gamut expand. More vivid colours can be reproduced.

  • Note: Pink toner can be used to reproduce the vivid colors of red, orange, and purple in RGB.



You can print on coloured media with high opacity White toner.



White underlay printing can be used as a base for coloured paper and transparency films.



Clear and metallic colours are less prone to be duplicated and effective on tickets, etc.

You can create premium print effects with Silver and Gold toners.

High resolution printing of 2.400 x 2.400 dpi

The heart of the printer, ROS*1, uses VCSEL*2 as a light source. It enables printing at 2.400 x 2.400 dpi high resolution by drawing images simultaneously with multiple laser beams.

  • *1: Raster Output Scanner
  • *2: Vertical Cavity Surface Emitting Laser

Super EA*-Eco toner for high image quality

Super EA-Eco toner with extremely small particle size allows smooth reproduction of gradations in photographs, uniform density and sharper fine lines and text. It also produces easy-to-read printed text with less glare.

  • EA: Emulsion Aggregation

Easy and quick adjustment

The inline sensor is built into the printer body, allowing easy and quick calibration. It also has an automatic adjustment function that allows you to adjust* multiple settings at once. It minimises the effort required for maintenance and downtime.

  • Batch adjustment of the following can be performed: Auto Alignment, 2nd Bias Transfer Roll Correction, Auto Tone Correction, Density Uniformity Correction.

Print server with high resolution and fast processing.

Image data processing maximising print engine performance

High quality image data can be generated with RIP processing of 1.200 x 1.200 dpi and 10 bit (1.024 gradation levels) on the print server. In addition, high resolution and smooth screen image of 2.400 x 2.400 dpi can be generated on the device with our unique HQ digital screen technology (MACS*) employed. These data processing technologies can generate high image quality brought from the maximisation of the print engine performance.

  • Micro Accurate Control Screen.

Professional colour management system

Supports various CMYK colour standards such as Fogra, SWOP and GRACoL.

Calibration for G7® standard

G7® calibration achieves consistent gray balance and neutral tonality across different printing processes, substrates, and printing conditions.

  • Note: A standard that is widely adopted in the printing industry to ensure color consistency and quality across various printing technologies and platforms.

Image Enhancement in a more beautiful way

Higher image quality has been implemented with "Edge Enhancement" that fixes jaggedness on the edge of thin line and text outline and "Adjust Invert Text/Line Weight" that fixes thickened / blurred text.

  • Note: Default setting: OFF

Selecting different screens for individual objects for optimum image quality

You can select the suitable screen for each object such as a text and photo. The FM screen is effective for moire. Granular roughness that tends to occur on FM screens is suppressed by the dot arrangement suitable for the electrophotography profile, realising a smooth image quality.

Make skin texture beautiful

Equipped with a function to brighten the image using fluorescent Pink toner. By separating into CMYK + Pink, skin tones can be brighter, and the texture of the skin can be reproduced smoothly and beautifully.

  • Note: You can choose 3 levels of effect. Since the pink layer is generated from magenta, it affects the images containing magenta.

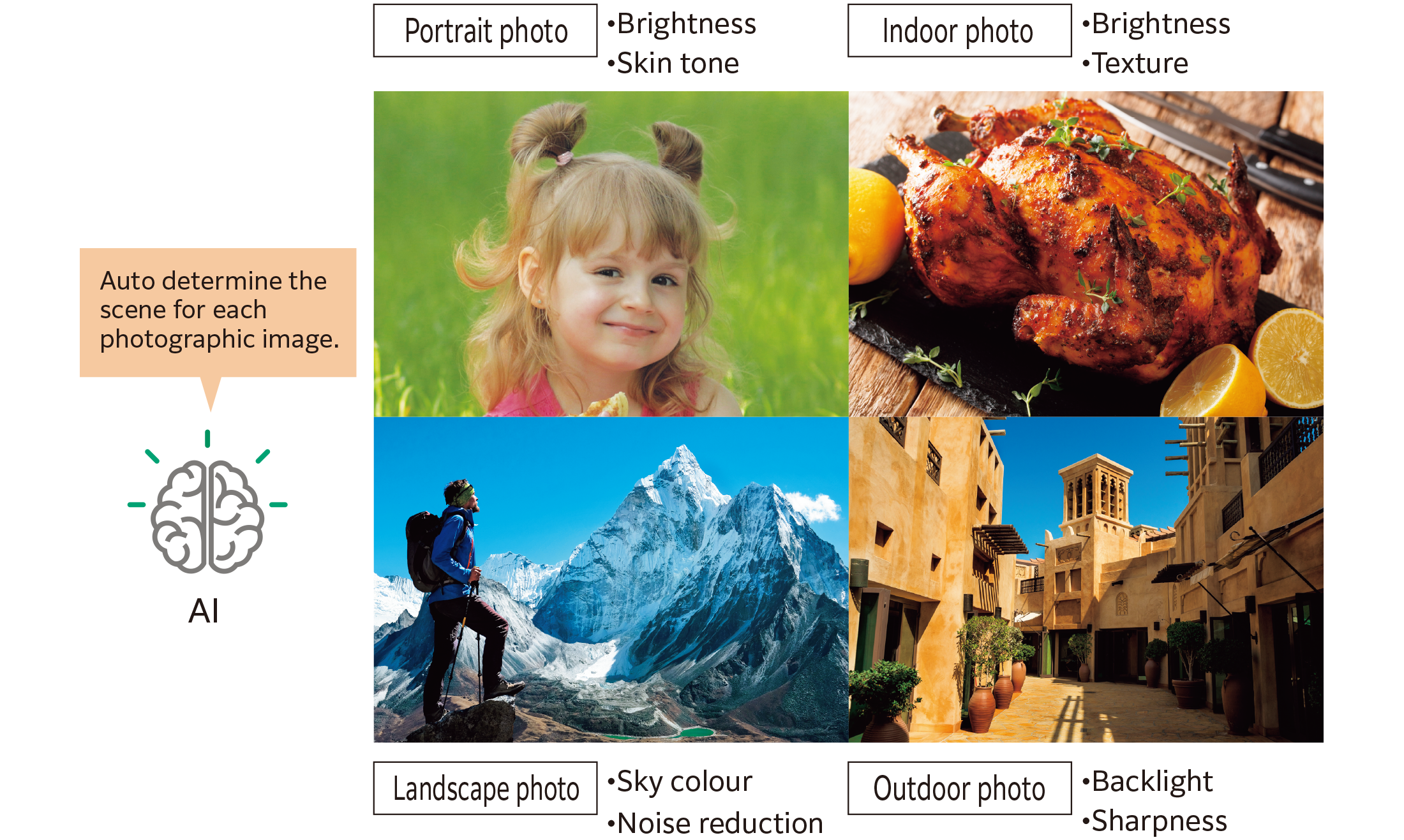

AI-based photo quality optimisation*

AI (Artificial Intelligence) automatically determines the scene for each photographic image on the page and corrects the image appropriately for each of them. Low quality images, such as poor contrast and brightness, can be automatically corrected.

  • Applies to RGB type images.



Logos

A wider range of media types and finishes.

Supporting a wide range of paper weights from lightweight paper of 52 gsm to heavyweight paper of 400 gsm

Paper sizes ranging from A6 to 330 x 488 mm are available. Full-bleed printing on SRA3 (320 x 450 mm) is also possible and it is useful to create brochures or leaflets that need to have bleed.

Supports banner sheets of maximum 1.200 mm

You can print up to 330 x 1.200 mm banner sheets for simplex printing*. Widen the scope of new printing application such as powerful panoramic posters.

  • Note: Please contact our sales representative for paper feeder or output module that is required for Banner sheet printing
  • Up to 330 x 729 mm for automatic duplex printing.

Eliminate static electricity on Film and Metallic media

Film and metallic media are easily charged by static electricity when printing, and the printed media may stick together. However, the inline static eliminator module* makes it easy to stack and align these media.

  • Optional "Static Eliminator D1".

Various inline finishing*

You can create a variety of finished products with full bleed, trimming, crease and folding options.

  • Optional

Connection with third-party finishers*

Third-party finishers* can be connected inline.

  • Optional "High Capacity Stacker A1 with Transport Module" is required.
    Please contact our sales representative for third-party finishers.

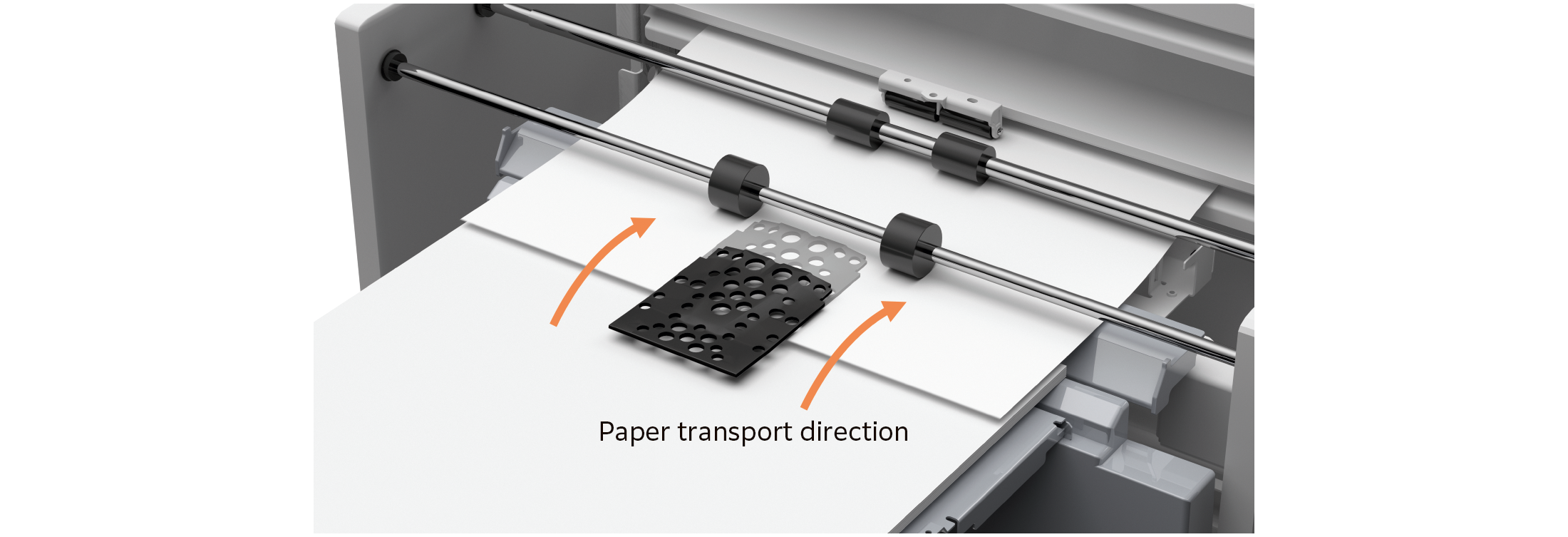

"Air Suction Feeder*" with enhanced paper handling capabilities

Using air suction shuttle head picks up each sheet individually and delivers it securely. This improves paper feeding performance for low quality, textured and coated media.

  • Optional



Inspection with Automatic Recovery

It automatically checks printing defects. The error sheet can be discharged and automatically reprinted. It saves you a lot of time and effort.

Image Inspection: Detects printing defects such as dots, stains, pinholes, streaks, dog ears by comparing scanned images with RIP images in real time.

Barcode/OCR Inspection: Verifies the printed barcordes or OCR fonts are readable, the numbers are sequential or the numbers on side 1 and side 2 are match.

Stability: You can control print quality by knowing the alerts of density fluctuations or misalignment during printing.

  • Note: Options are required.
    Please contact our sales representative for details.

Inspects printed barcode (example) Inspects printed barcode (example)

Expand applications with combined options.

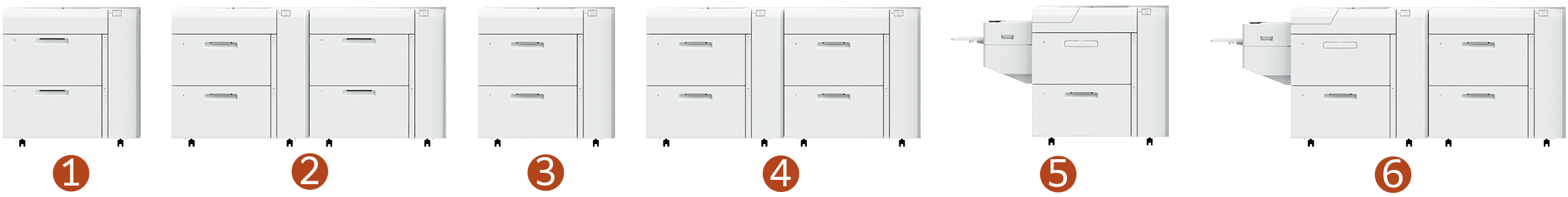

Feeding options



1. High Capacity Feeder C3-DS + Multi Sheet Inserter*1
- Air assist
- Multifeed detection
- 2.000 sheets x 2 trays+250 sheets
- Maximum SRA3, 330 x 488 mm
2. 2nd High Capacity Feeder C1-DS+ High Capacity Feeder C3-DS + Multi Sheet Inserter*1
- Air assist
- Multifeed detection
- 2.000 sheets x 4 trays +250 sheets
- Maximum SRA3, 330 x 488 mm
3. Air Suction Feeder C1-DS*2
- Air suction
- Multifeed detection
- 2.100 sheets x 2 trays+250 sheets
- Maximum SRA3, 330 x 488 mm
4. Chained Air Suction Feeder C1-DS-L*2 + Chained Air Suction Feeder C1-DS-R
- Air suction
- Multifeed detection
- 2.100 sheets x 4 trays + 250 sheets
- Maximum SRA3, 330 x 488 mm
5. Air Suction Feeder C1-DSXL*2 + Banner Unit for Air Suction Feeder C1-DSXL
- Air suction
- Multifeed detection
- Long sheets feeding
- 800 sheets + 2.100 sheets+250 sheets
- Maximum 330 x 1.200 mm (Upper tray)
6. Chained Air Suction Feeder C1-DSXL-L*2 + Chained Air Suction Feeder C1-DS-R + Banner Unit for Air Suction Feeder C1-DSXL
- Air suction
- Multifeed detection
- Long sheets feeding
- 800 sheets + 2.100 sheets x 3 trays+250 sheets
- Maximum 330 x 1.200 mm (Upper tray)

Output options

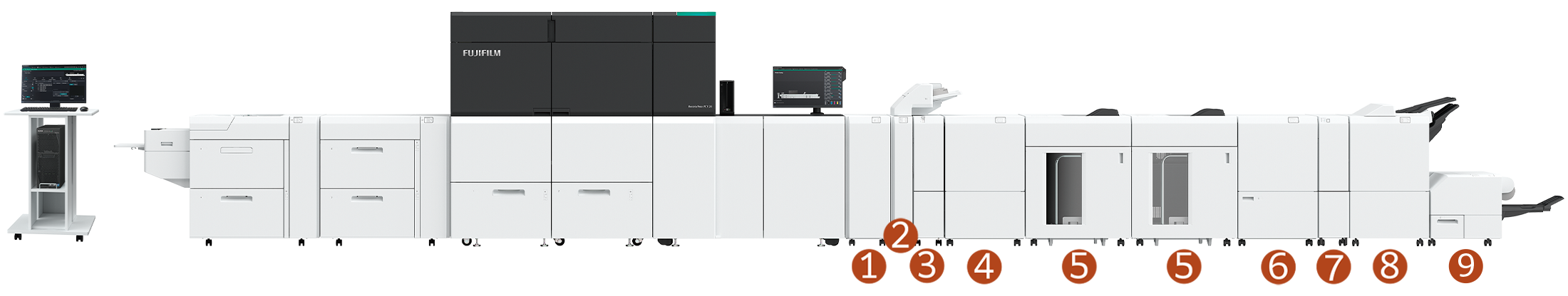

Full Configuration: W 10462 x D 1104 x H 1786 mm Full Configuration: W 10.462 x D 1.104 x H 1.786 mm

1. Interface Decurler Module D1
- Real-time paper curl correction
2. Inserter D1
- Cover / sheet insertion
3. Static Eliminator D1
- Eliminate static electricity
4. Smart Monitoring Gate D1
- Print inspection
5. High Capacity Stacker A1
- 5.000-sheet offset-stacking
- Single and dual combinations
- Stacker cart
- Long sheets Output
High Capacity Stacker A1 with Transport Module
- Connection with 3rd party finisher
- 5.000-sheet offset-stacking
- Stacker cart
- Long sheets Output
6. Crease/Two-sided Trimmer D2
- Two-sided trim
- Crease
7. Folder Unit CD2
- Z fold half sheet
- Tri-fold
8. Finisher D6
- Sort / Stack
- Stapling
- Hole punch*3
- Long sheets Output
Finisher D6 with Booklet Maker
- Sort / Stack
- Stapling
- Hole punch*3
- Single fold
- Saddle staple
- Long sheets Output
9. Square Back Fold Trimmer D1
- Face trim
- Square back
Offset Catch Tray

- Offset Stack

Long Catch Tray

- Long sheets Stacking

  • *1: Multi Sheet Inserter or Multi Sheet Inserter for Banner Print is required.
  • *2: Multi Sheet Inserter for Banner Print is equipped as standard.
  • *3: Optional
