Overview
Printing with a high level of productivity and quality
The highest printing density in the industry (in 160 m/min continuous paper inkjet printer class)
Features
Full-color printing at 160 m/min*1
The printer can print in full color at a maximum speed of 160 m/min, which is equivalent to 2,096 pages per minute on precut A4 paper*2.
Mass batch prints of tens of thousands of pages may be created at high speeds through the use of the unwinder and rewinder*3.
This ensures great productivity and stable processing for high-volume/short-duration print jobs such as trans-promo materials and invoices.
- *1: Speed priority mode (1,200 x 600 dpi)
- *2: Two-sided printing with dual layout of A4 pages
- *3: Optional
Pigment Inks with High Concentrations
Superior image quality printing is achieved through the newly designed high-concentration pigment ink.
High-quality, high-definition prints up to 1,200 x 1,200 dpi
Printer can produce output image with great resolution:
- 1,200 x 600 dpi (with a print speed of 160 m/min)
- 1,200 x 1,200 dpi (with a print speed of 80 m/min)
It prints characters and numbers clearly.

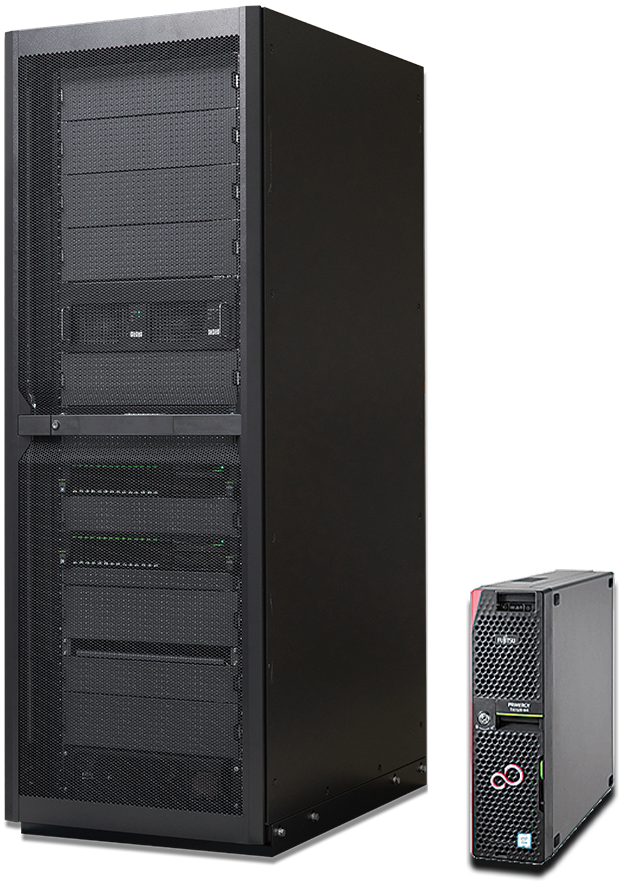

Print server featuring FUJIFILM Business Innovation's unique technology provides high quality output and rapid processing.
- Faster on-the-fly*1 printing
- High quality image data processing 1,200 x 1,200 dpi, 8 bit
- Supporting APPE*2 perfect for PDF output
- High-precision CMYK profiles
- High-speed, large volume printing of variable data
(Mercury RIP, Industry standard PPML, PDF/VT-1, PDF/VT-2) - Increased fault tolerance due to OS HDD redundancy
- Uninterruptible power supply (UPS)*3
- *1: Requires direct printing without creating raster data in advance.
- *2: Adobe® PDF Print Engine
- *3: A product sold by Fujitsu. Two units are required.
-

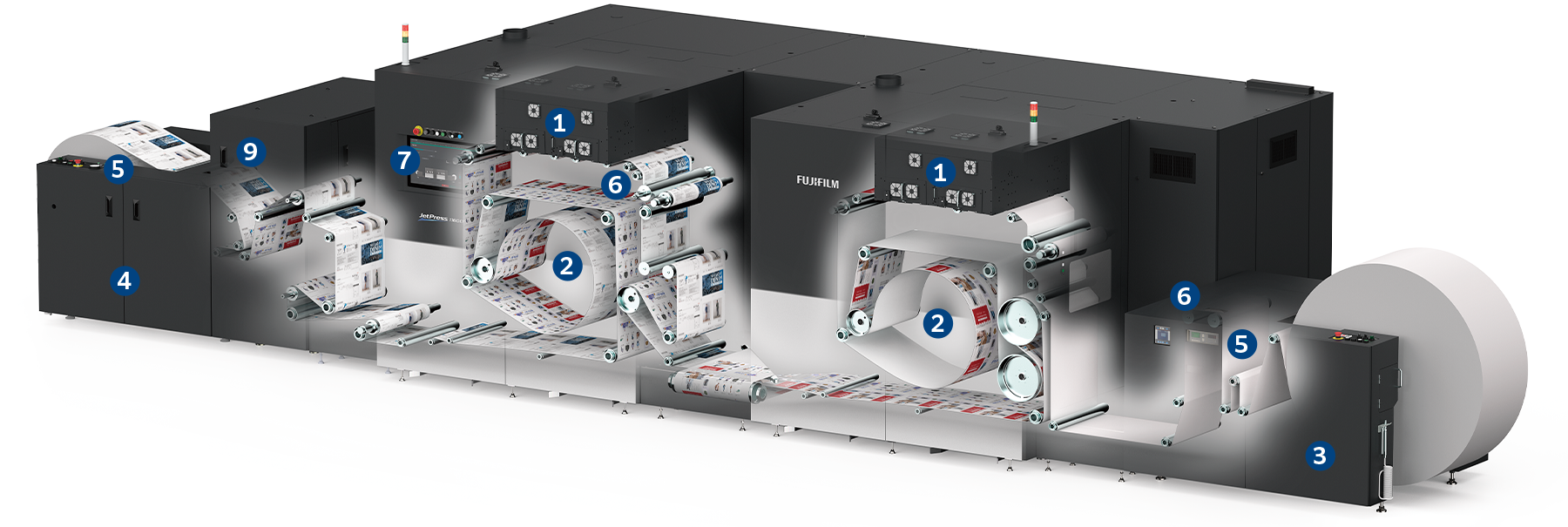

Print Head Box
The print head supports 1,200 x 1,200 dpi printing.
A single dot can be expressed with up to three gradations, allowing for smoother density transitions. -
Dryer
Two types of drying technology is utilized: heat drum and heat air dryers. -
Unwinder
It can be configured to feed paper with roll positioned for top or bottom feeding.
Raising and lowering heavy paper rolls is performed through a simple mechanism. Paper alignment can be applied rapidly through a simple interface. -
Rewinder (Optional)
The machine can wind paper either upwards or downwards. A touch roller is added to prevent wrinkling when rewinding. -
Tension Controller
It assures that paper tension remains constant, helping to stabilize paper feed during high-speed printing. -
Edge Guide
Paper movement, positioning, monitoring allows for adjustment to remove any misalignment of the paper path which allows for a smooth printing process. -

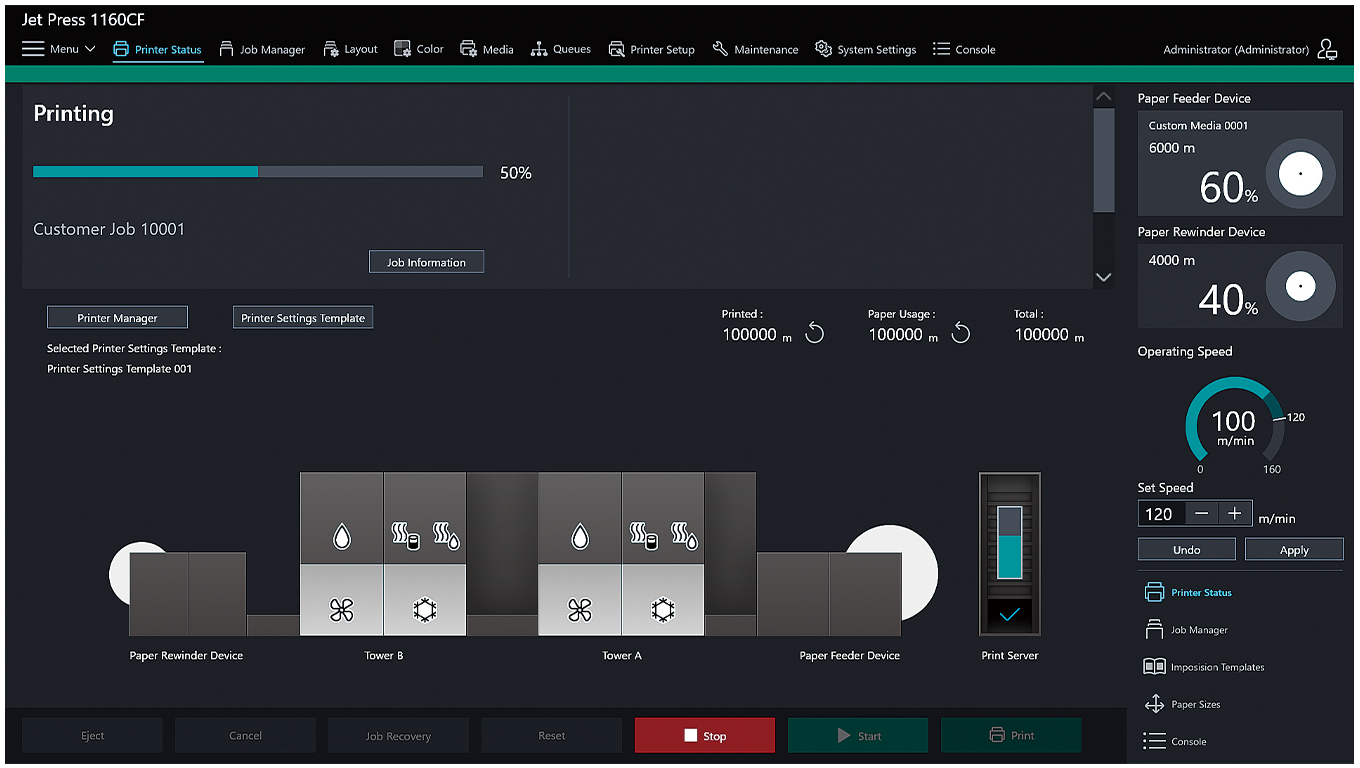

Operation Panel
Machine operation is via a simple touch screen interface.
-

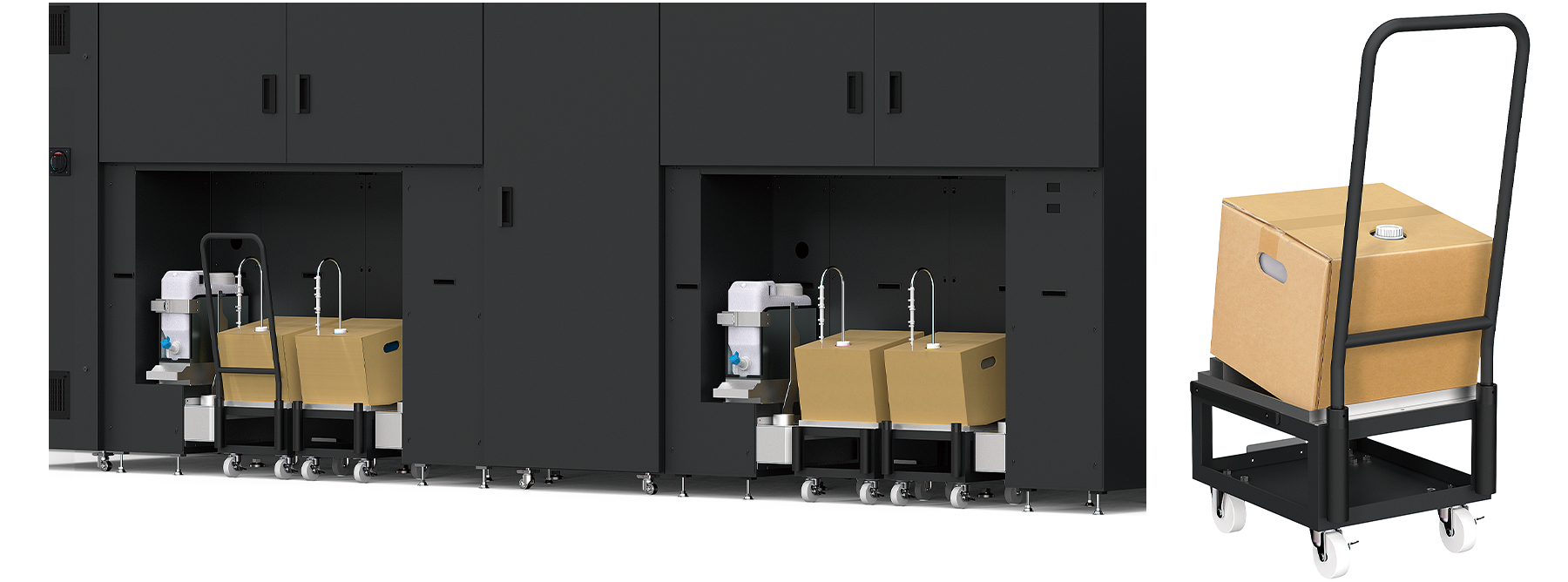

Cart Ink Pack
The four-color ink packs are located on the back of the printer. Ink packs weigh about 20 kg per color. Replacement is performed easily using a specialized cart.
-
Inspection Box (Optional)
This is the box for inspection unit for example.
Different kinds of inspection boxes and units are available depend on countries.- Note: Contact with our sales representative for details.
-

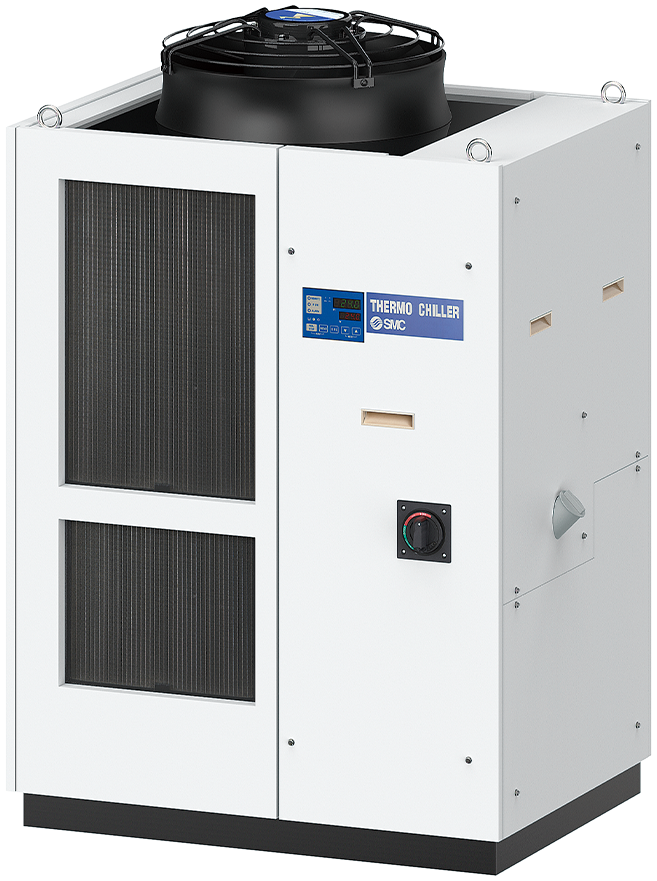

Chiller
The chiller flows water through the printer to cool the paper.
- 11. Slack Web Unit (Optional)
- This unit applies tension to roll paper when not using the rewinder. Users can utilize a post-processing device with a loose tension.
