An Evolution of Form and Function
The ever lighter FDR D-EVO III is introduced with our flexible film-based TFT detector, providing high image quality with low X-ray dose. FDR D-EVO series will never stop evolving to improve the workflow in various clinical scenes.

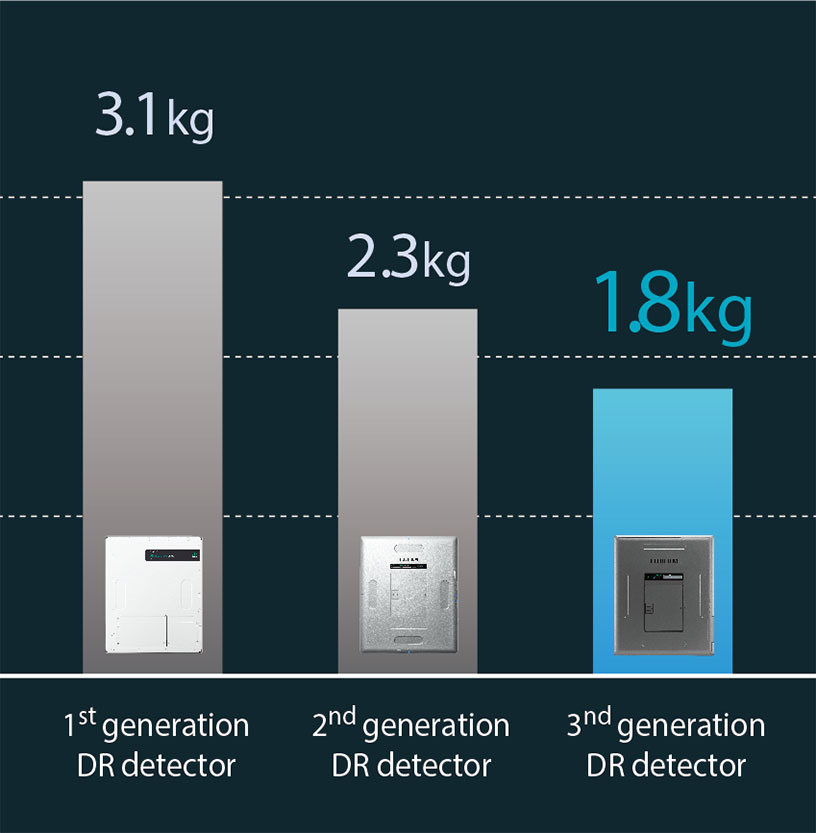

Replacing the glass-based TFT detector with thin film, FDR D-EVO III is the lightest FPD avail able at 1.8kg*1. Compared to the 1st generation FDR D-EVO, FDR D-EVO III is about 40% lighter.
- *1 excludes battery pack
Higher DQE 33% (1Lp/mm-RQA5 1mR)
Higher Quality with DQE 33% (1Lp/mm-RQA5 1mR)
Film-based TFT detector with ISS method
![](https://asset.fujifilm.com/www/ee/files/2020-12/f671a6f3d36b51ec5d2ebe62a3aec90e/fig_fdr-d-evo-3-g35-g43_02.jpg)
Glass-based TFT detector with ISS method
![](https://asset.fujifilm.com/www/ee/files/2020-12/ba33ae649847ed66b91d08657fb63011/fig_fdr-d-evo-3-g35-g43_03.jpg)
The new flexible film-based TFT detector, compared to our previous FDR D-EVO models, decreases the risk of fracture of TFT detector caused by external shock.
High-level protection

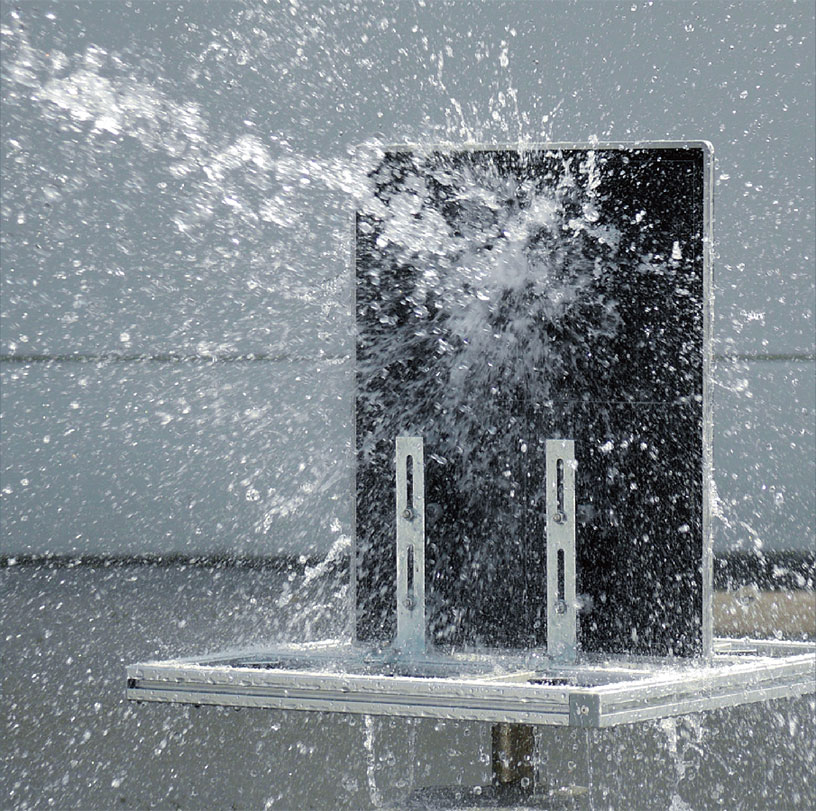

Structured to prevent the infiltration of liquids, the device conforms to IPX6 and can withstand jets from any direction*. There is no need to worry for fluid permeation inside the device caused by fluid like blood or vomit. FDR D-EVO III also complies with IP5X for dust-proof structure, preventing malfunction caused by small particles*2.
- *2 These effects cannot always be guaranteed in the future for its product characteristics.

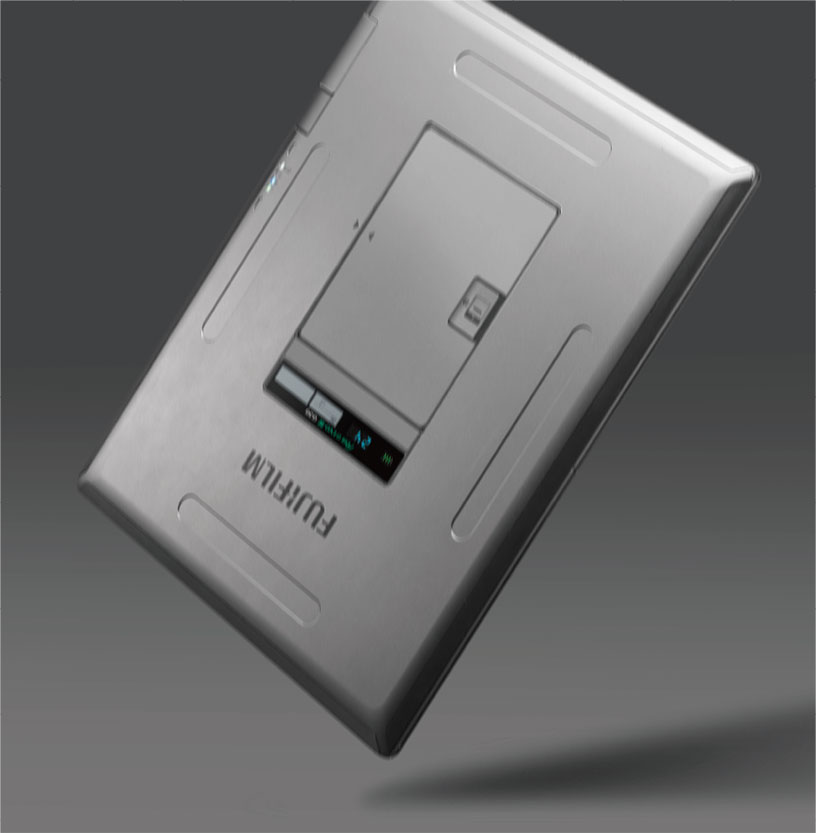

Easy-to-clean flat shape
The FDR D-EVO III introduces a flat design and reduced contours, promoting easier and more efficient cleaning.

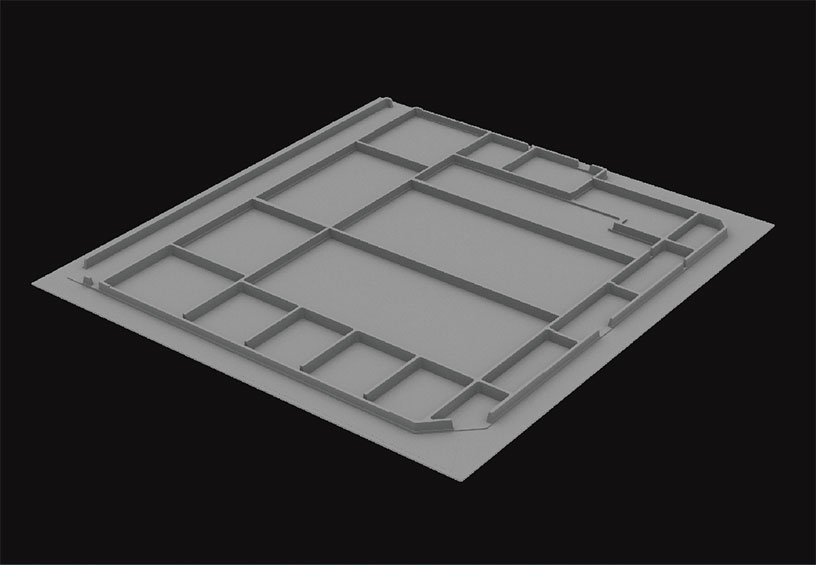

Forging frames constructed with Mg-Li alloy provides robust protection for internal devices, while maintaining a lightweight design. With this technology, FDR D-EVO III has a 310kg load capacity.
Hydro Ag antibacterial coating
The FDR D-EVO III detectors are coated with Hydro Ag antibacterial coating, which has an antibacterial effect 100 times greater than that of conventional Ag coatings. This longer-lasting higher intensity antibacterial effect prevents bacterial growth. A hyper-hydrophilic binder allows easy cleaning and hygienic use, together with the easy-to wipe flat design of the detector.
- * Due to the characteristics of the product, the effect is not guaranteed in the future.
![](https://asset.fujifilm.com/www/ee/files/2020-12/e28d7e1c006b51b588b5a86c2e0034d2/fig_fdr-d-evo-3-g35-g43_04.jpg)
JIS Z 2801/ISO 22196 complied test (Escherichia coil)
![](https://asset.fujifilm.com/www/ee/files/2020-12/c795228cd03e089de018e12df4110c3f/fig_fdr-d-evo-3-g35-g43_05.jpg)
Peripheral devices for effortless handling

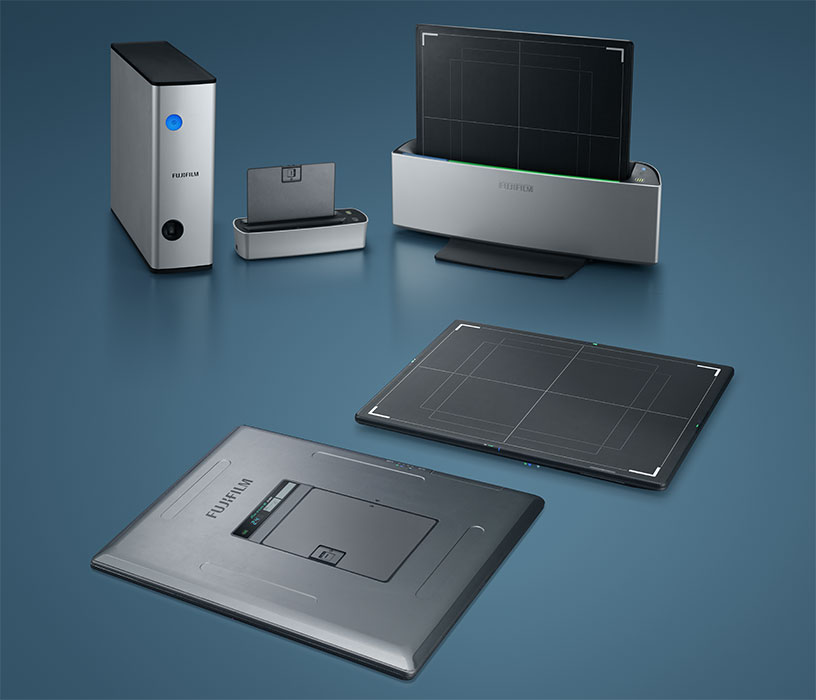

Battery charger, docking stand, power supply unit and power box for FDR D-EVO II can also be operated with FDR D-EVO III, for improved usability and easier handling.
LED lamps on the front of device for better visualization
LED lamps are equipped on four sides of the front of the detector, for a visual assistance.
![](https://asset.fujifilm.com/www/ee/files/2020-12/cbf93d11f24b068a8bf2e4c1d85ae71d/pic_fdr-d-evo-3-g35-g43_05.jpg)
[ 1] Centralizing the device and distinguishing devices
- Equipped with side-center LEDs on four sides of the detector, for easier positioning of the device during imaging. There are five LED colors (blue, pink, orange, lime-yellow and purple), to distinguish different devices for different colors when using multiple devices. During sleep mode, the side-center LED light flickers gently to visually announce the battery status.
[ 2] Device status displayed in green
- When the device is ready for X-ray exposure, the LED lights up in green.
[ 3] Front side identification in white
- The front side of device is easily identifiable with the LED that lights in white.

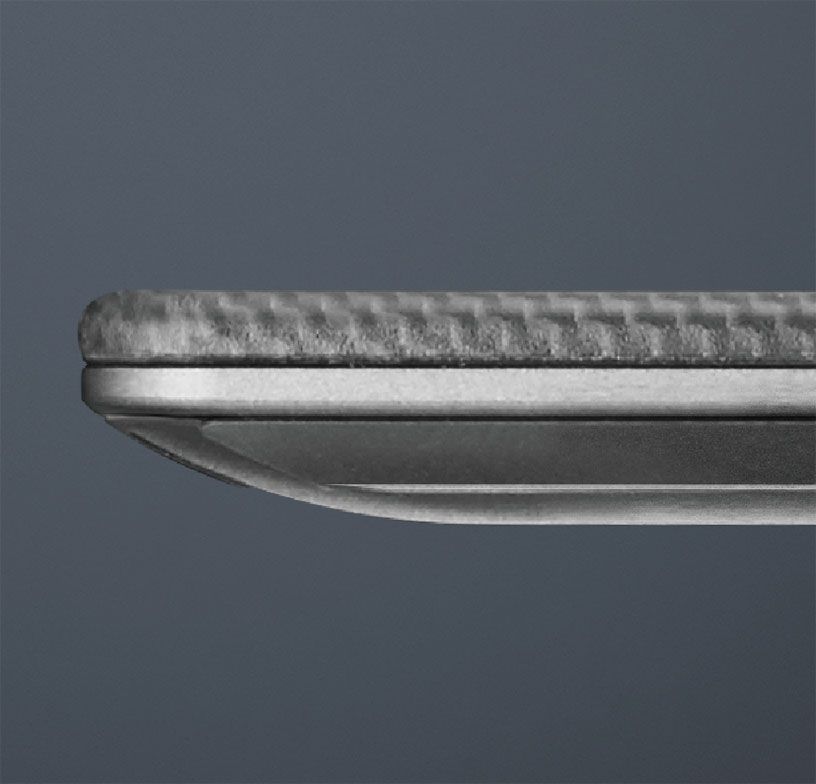

The curved, shell designed edges are employed on both sides of the panel. The curved corners allow for an easier insertion into patient beds. The easy-to-grasp shape assists to pick up even when placed on a flat surface, improving task efficiency.

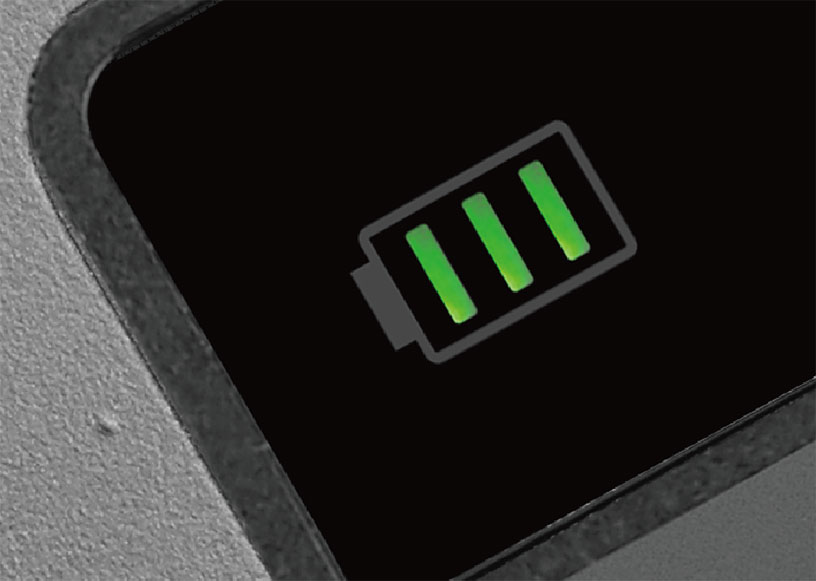

The back of the detector is equipped with an LED lamp that displays remaining battery status. This allows easy checks of remaining battery, and eliminates worries when using the detector.

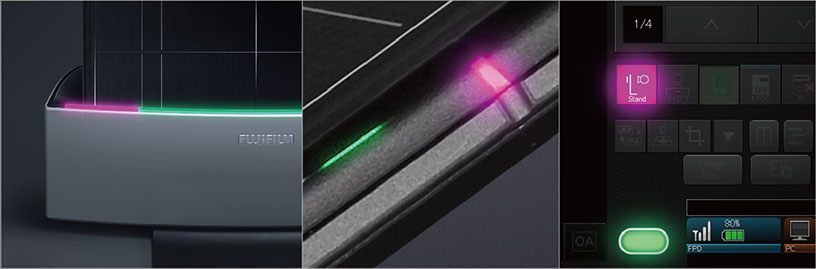

The docking stand works together with the console to display the detector’s “Ready” status and identify color using the LEDs. This makes it easy to check the current state of the detector even from far away.
Improved handling

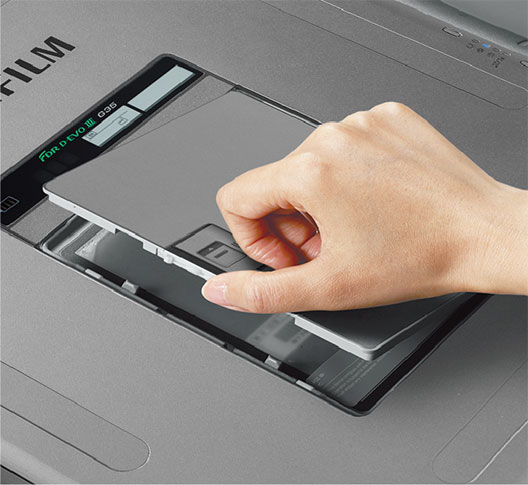

The battery can be replaced with one hand and the panel is ready to image in 35 seconds following the replacement. This eliminates worry and stress about battery life and battery changing.
Suitable for outdoor use with an expanded spectrum
Supports 2.4GHz and 5GHz (W52/53/56/58)*3 spectrum. Suitable for outdoor use during disasters.
- *3 It depends on the regulation of each country which wireless band is allowed to be used.

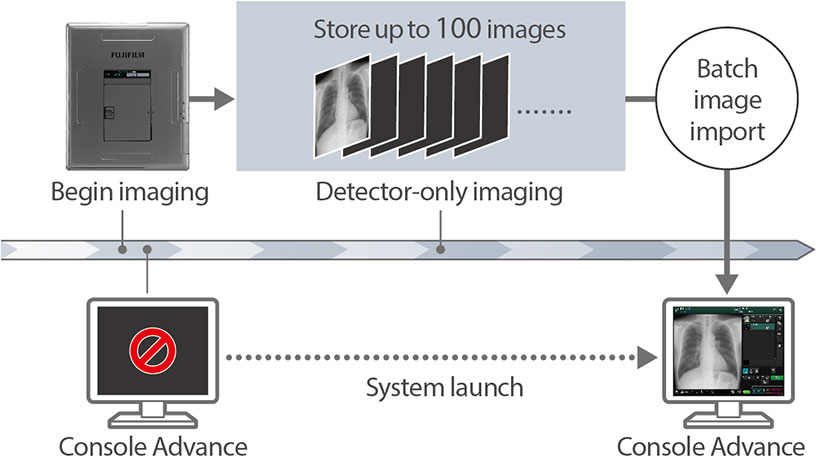

Internal storage of 100 images allows the detector to eliminate the additional work associated with multiple cassettes with conventional CR workflow. It also supports rapid imaging in cases of night time and emergency situations.
Flexible handling
FDR D-EVO III, for its unique combination of advanced technology, can play an active role in various clinical situations, across rooms and systems. This is not only limited to X-ray rooms, but in patient rooms and dedicated rooms such as Emergency rooms and Operation rooms.
Fujifilm developed a technology “SmartSwitch” which allows automatic X-ray detection. With “SmartSwitch,” FDR D-EVO III no longer requires connection between the X-ray generator and DR power supply unit to automatically detect X-rays and start image creation.
System Configuration
![](https://asset.fujifilm.com/www/ee/files/2020-12/4d77053eb9627c9417c88e7c50cc42a7/fig_fdr-d-evo-3-g35-g43_08.jpg)
Products Name : FDR D-EVO Ⅲ(Model name : DR-ID 1800)
