2/3" Studio / Field Box Lenses

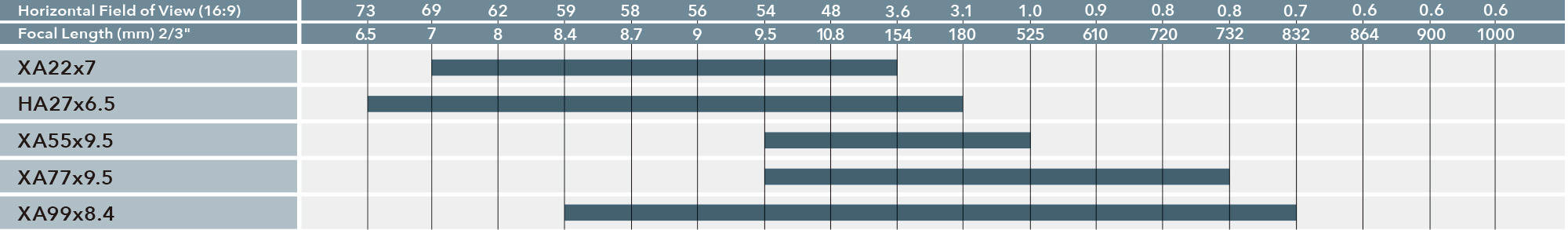

![[image] Chart comparing the Horizontal Field of View (16:9) and the Focal Length (2/3 inch) by model number](https://asset.fujifilm.com/www/ec/files/2022-01/75f903c86b30b50e1fb7cc5046533dc7/fig_Studio_FieldLenses_01.jpg)
Lineups
XA55x9.5BESM
- 55x high-power zoom and high optical performance
- Equipped standard bracket for cost-effective ENG style camera
- Standard feature of OS-TECH technology
- Virtual System Support
- Adoption of new design
![[photo] 2/3 inch Studio / Field Box lens model XA55x9.5BESM](https://asset.fujifilm.com/www/ec/files/2019-10/e210911fccd0b1b8c7ee9323d3f6b9cb/pic_Studio_FieldLenses_03.jpg)
Specifications
- Model Name
XA55x9.5BESM
- Focal length
[1x]
9.5-525mm[2x]
19-1,050mm- Zoom ratio
55x
- Extender
2x
- Maximum Relative Aperture (F-No.)
1 : 1.7 (9.5-308mm)
1 : 2.9 (525mm)- Minimum object distance (M.O.D.) from front lens
3.0m
- Object dimensions at M.O.D.
16 : 9 Aspect ratio [1x]
9.5mm 2,782 x 1,564mm
525mm 51 x 29mm[2x]
19mm 1,406 x 790mm
1,050mm 26 x 15mm- Angular field of view
16 : 9 Aspect ratio [1x]
9.5mm 53.6° × 31.7°
525mm 1° × 0.6°[2x]
19mm 28.3° × 16.1°
1050mm 0.5° × 0.3°- Approx. Size
253 × 253 × 876mm(HxWxL)
- Approx. Mass
24.8 kg
-
* XA55x9.5BESM without lens supporter model is also available.
XA77x9.5BESM
- 77x high-power zoom
- High optical performance with newly HT-EBC Coat technology
- OS-TECH technology
- Virtual System Support
- Adoption of new design
![[photo] 2/3 inch Studio / Field Box lens model XA77x9.5BESM](https://asset.fujifilm.com/www/ec/files/2019-10/56a701f9afa499c243df26020dbc93c6/pic_Studio_FieldLenses_04.jpg)
Specifications
- Model Name
XA77x9.5BESM
- Focal length
[1x]
9.5-732mm[2x]
19.0-1,464mm- Zoom ratio
77x
- Extender
2x
- Maximum Relative Aperture (F-No.)
1 : 1.7 (9.5-335mm)
1 : 3.8 (732mm)- Minimum object distance (M.O.D.) from front lens
2.7m
- Object dimensions at M.O.D.
16 : 9 Aspect ratio [1x]
9.5mm 2,425 x 1,363mm
732mm 32 x 18mm[2x]
19.0mm 1,241 x 697mm
1,464mm 16 x 9mm- Angular field of view
16 : 9 Aspect ratio [1x]
9.5mm 53.6° × 31.7°
732mm 0.8° × 0.4°[2x]
18.6mm 28.3° × 16.1°
1464mm 0.4° × 0.2°- Approx. Size
253 × 253 × 656.4mm(HxWxL)
- Approx. Mass
22.4kg
