LTO Ultrium Data Cartridge : Specifications

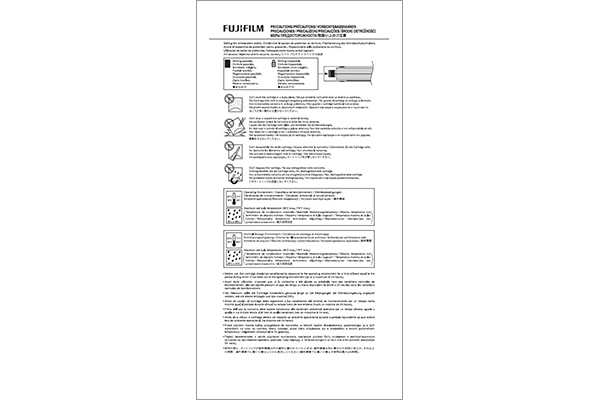

Technical Data & Line up Media/Drive compatibility Eco Pack Library Pack Data Tape Pro Case Warranty/Precautions/Disposal of Tape

Technical Data & Line up

LTO Generation	Universal Cleaning Cartridge	LTO G4/G4 WORM	LTO G5/G5 WORM	LTO G6/G6 WORM	LTO G7/G7 WORM	LTO G8/G8 WORM	LTO G9/G9 WORM
Basic Specifications
Native Capacity (Compressed)	－	800GB (1.6TB)	1.5TB (3.0TB)	2.5TB (6.25TB)	6TB (15TB)	12TB (30TB)	18TB (45TB)
Max.Transfer Rate^*1 (Compressed)	－	120MB/sec. (Up to 240MB/sec.)	140MB/sec. (Up to 280MB/sec.)	160MB/sec. (Up to 400MB/sec.)	300MB/sec. (Up to 750MB/sec.)	360MB/sec. (Up to 750MB/sec.)	400MB/sec. (Up to 1,000MB/sec.)
Number of Tracks	－	896	1,280	2,176	3,584	6,656	8,960
Servo Band	－	Timing-based servo
Cartridge Memory	32,786bits (4,096bytes); Internal EEPROM	65,280bits(8,160bytes); Internal EEPROM		130,816bits(16,352bytes); Internal EEPROM			261,888bits (32,736bytes); Internal EEPROM
Physical Characteristics
Tape Width	－	12.65mm
Tape Thickness	8.9μm	6.6μm	6.4μm	6.1μm	5.6μm		5.2μm
Tape Length	319m	820m	846m		960m		1,035m
Cartridge Dimensions (L x W x H)	102 x 105.4 x 21.5 mm
Recommended Operation Environment
Temperature	10～45℃						15～25℃
Humidity	10～80%RH						20～50%RH
Max Wet Bulb Temperature / Max Dew Point Temperature	26℃ (Max Wet Bulb Temperature)						22℃ (Max Dew Point Temperature)
Recommended Storage Environment
Temperature	16～35℃(Short Term)/16～25℃(Long Term)						15～25℃
Humidity	20～80%RH(Short Term)/20～50%RH(Long Term)						20～50%RH
Max Wet Bulb Temperature / Max Dew Point Temperature	26℃ (Max Wet Bulb Temperature)						22℃ (Max Dew Point Temperature)
Allowable Operation Environment
Temperature	10～45℃						15～35℃
Humidity	10～80%RH						20～80%RH
Max Wet Bulb Temperature / Max Dew Point Temperature	26℃ (Max Wet Bulb Temperature)						22℃ (Max Dew Point Temperature)
Allowable Storage Environment
Temperature	16～35℃(Short Term)/16～25℃(Long Term)						15～35℃
Humidity	20～80%RH(Short Term)/20～50%RH(Long Term)						20～80%RH
Max Wet Bulb Temperature / Max Dew Point Temperature	26℃ (Max Wet Bulb Temperature)						22℃ (Max Dew Point Temperature)

*1 Depends on the drive interface.
* The Universal Cleaning Cartridges are designed for use in all LTO Ultrium 1 through 9 drives.
Specific revisions of firmware may be required for proper operation.
* WORM：WORM（Write Once Read Many）is data cartridge in which information, once written, cannot be modified.
It is a cost-effective storage capability which ensures data is not overwritten, and to help address compliance regulations.

Media/Drive compatibility

〇：Read/write　△：Read only(no writing)　×：No read/write

Media/Drive	G9 Drive	G8 Drive	G7 Drive	G6 Drive	G5 Drive	G4 Drive
LTO G9	〇	×	×	×	×	×
LTO G8	〇	〇	×	×	×	×
LTO G7	×	〇	〇	×	×	×
LTO G6	×	×	〇	〇	×	×
LTO G5	×	×	△	〇	〇	×
LTO G4	×	×	×	△	〇	〇

Eco Pack

Sustainable packing makes handling and managing LTO tapes significantly easier.

Eliminate individual small carton box and hard case, shrink wrapping.
Increase productivity (Takes 85% less time to open^*2)
Reduce waste (waste reduced by 2/3 compared to regular products)
Reduce CO₂ emissions (85% reduction in production process CO₂ emissions)
Space saving (Uses approximately 30% less space^*3)
Cartridges per Pack is 20.

*2Figures obtained by comparing packaging material opening times.
*3 Compared to our standard products.

Library Pack

The library pack protects the cartridges against impact if dropped and provides also added protection against dust and humidity.
It's a good and safe storage and archival solution offering easy and quick unpacking, carrying and piling.

Data Tape Pro Case

The DATA TAPE COURIER PROFESSIONAL CASE, a new media container made of industrial-strength, lightweight, high-density polyethylene. The case features heavy-duty lockable compression clasps and soft interior contact points that create a durable seal. It can be used to transport data cartridges from one location to another or to off-site storage, in fulfillment of your company's commercial, proprietary and regulatory requirements. The DATA TAPE COURIER PROFESSIONAL CASE is certified and approved by FUJIFILM to protect LTO cartridges and enterprise cartridges.
