Use with a high-sensitivity digital radiography (DR) system to take low-dose high-resolution images

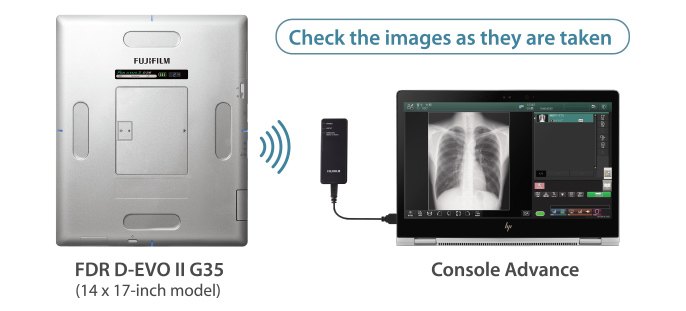

Using the FDR D-EVO II with the Console Advance image-processing unit enables low-dose, high-resolution imaging. This system offers even higher-resolution images thanks to Virtual Grid image-processing technology and Dynamic Visualization II.
Digital Radiography: FDR D-EVO II
Higher sensitivity achieved by advanced reading technology "ISS system"
A combination of a columnar crystal CsI scintillator** with Fujifilm’s “ISS system” enables the suppression of energy attenuation and light scattering and achieves higher resolution imaging at low X-ray doses, leading to the level of DQE 54% (approx. 1Lp/mm, 1mR) and MTF 80% (approx. 1Lp/mm, 1mR).
** CsI series
![ISS system reading technology](https://asset.fujifilm.com/www/ca/files/2020-09/7b46620b4cc7f4354619e59ab6374f1d/pic_features_08.jpg)
Fujifilm noise-reduction circuit enables the noise reduction of the image, improves the granularity of low-density regions, and achieves high image quality.
Virtual Grid is an image processing software that corrects for the effects of scatter radiation that otherwise reduce image contrast and clarity. Without the need for an anti-scatter grid, this software quickly creates high quality images.
![grid comparison image](https://asset.fujifilm.com/www/ca/files/2020-09/e3c5417846db285dee00d7d350e4b1f0/pic_features_11.jpg)
![Grid ratio image](https://asset.fujifilm.com/www/ca/files/2020-09/75910437f852042511216a9de1dc5fb6/pic_features_12.jpg)
Advanced recognition algorithms automatically adjust contrast and density for individual body parts based on calculation of estimated 3D image data. (Option)
![conventional processing vs dynamic visualization image](https://asset.fujifilm.com/www/ca/files/2020-09/e4b8eedd179b0f03c3cf75cea8e9b0e4/pic_features_14.jpg)
