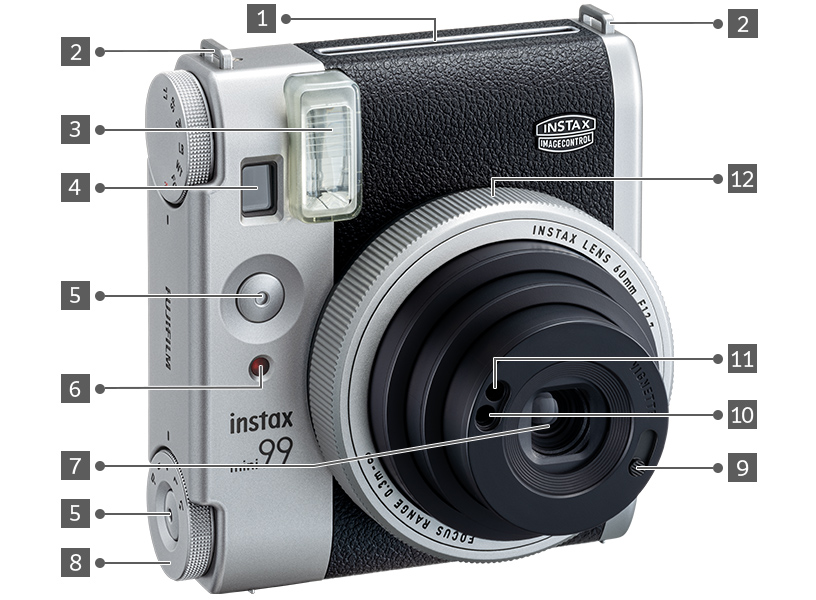

Front
- Film ejection slot
- Shoulder strap hook
- Flash
- Viewfinder
- Shutter button
- Self-timer lamp
- Lens/Lens cover
- Brightness control dial
- Manual vignette switch
- Flash light sensor
- AE light sensor
- Lens dial

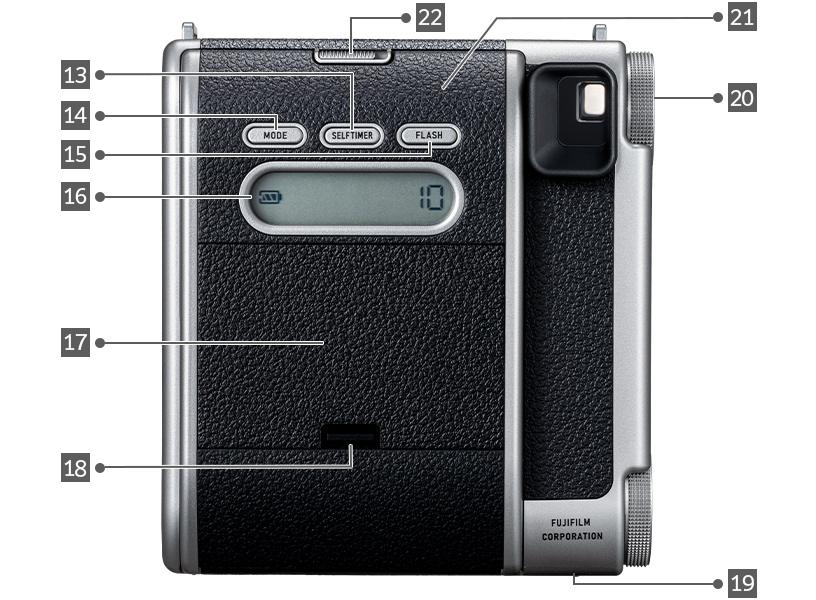

Rear
- Self-timer button
- MODE button
- Flash button
- Mode indicator
- Battery cover
- Battery cover lock
- Tripod mount
- Color effect dial
- Film door
- Film door lock
Specifications
- Film used
FUJIFILM INSTAX MINI Instant Film (sold separately)
- Photo picture size
62 mm × 46 mm
- Lens
Retractable lens, 2 components, 2 elements, f = 60 mm, 1:12.7
- Viewfinder
Real image finder, 0.37×, with target spot
Features parallax correction function for Macro Mode- Shooting range
Manual 3-point switching type (0.3m to 0.6m/0.6m to 3.0m/3.0m to beyond)
Shooting range: 0.3m to beyond- Shutter
Programmed electronic shutter 1.8 to 1/400 seconds.
Bulb Mode (opening time max. 10 seconds)
Shutter button (vertical shooting / horizontal shooting)- Exposure control
Automatic: LV 5.0 to 14.8 (ISO 800)
Exposure compensation (shading control): –5/3EV, –2/3EV, +2/3EV, +1EV- Film developing time
Approx. 90 seconds (varies depending on the ambient temperature)
- Flash
Automatic flash (automatic light adjustment)
Indoor mode (slow synchro flash), Fill-in flash, Flash off, Red-eye removal, Charging time: within 6.5 seconds (when using a fully-charged battery), Effective flash range: 0.3 m to 2.7 m- Power supply
Battery NP-70S (1 piece), capacity: approx. 10 INSTAX mini film packs (depends on usage conditions)
- Auto power off time
After 5 minutes
- Built-in self timer
Electronic operating time: approximately 10 seconds
- LCD
LCD display shooting modes (Indoor, Sports, Double exposure, Bulb)
Flash control mode, Self-timer mode, Battery level, Color effect
Film counter (remaining number of shots left)- Other
Tripod mount, Manual Vignette Switch
- Dimensions
103.5 mm × 117.5 mm × 60.0 mm (excluding protrusions)
- Weight
340 g (without battery, shoulder strap, and film)
- Specifications and performance are subject to change without notice.
