LTO Ultrium Data Cartridge - Specifications

NEW

FUJIFILM LTO tape is here to help you effectively manage your exponential data growth and preserve digital content sustainably for future generations.

Contact Us
Technical Data & Line upMedia/Drive compatibilityEco PackLibrary PackData Tape Pro CaseWarranty/Precautions/Disposal of Tape
Technical Data & Line up
LTO Generation Universal
Cleaning
Cartridge		 LTO G4/G4 WORM LTO G5/G5 WORM LTO G6/G6 WORM LTO G7/G7 WORM LTO G8/G8 WORM LTO G9/G9 WORM
Basic Specifications
Native Capacity
(Compressed)		 － 800GB
(1.6TB)		 1.5TB
(3.0TB)		 2.5TB
(6.25TB)		 6TB
(15TB)		 12TB
(30TB)		 18TB
(45TB)
Max.Transfer Rate*1
(Compressed)		 － 120MB/sec.
(Up to
 240MB/sec.)		 140MB/sec.
(Up to
 280MB/sec.)		 160MB/sec.
(Up to
 400MB/sec.)		 300MB/sec.
(Up to
 750MB/sec.)		 360MB/sec.
(Up to
 750MB/sec.)		 400MB/sec.
(Up to
 1,000MB/sec.)
Number of Tracks － 896 1,280 2,176 3,584 6,656 8,960
Servo Band － Timing-based servo
Cartridge Memory 32,786bits
(4,096bytes); Internal EEPROM		 65,280bits(8,160bytes); Internal EEPROM 130,816bits(16,352bytes); Internal EEPROM 261,888bits
(32,736bytes); Internal EEPROM
Physical Characteristics
Tape Width － 12.65mm
Tape Thickness 8.9μm 6.6μm 6.4μm 6.1μm 5.6μm 5.2μm
Tape Length 319m 820m 846m 960m 1,035m
Cartridge Dimensions
(L x W x H)		 102 x 105.4 x 21.5 mm
Recommended Operation Environment
Temperature 10～45℃ 15～25℃
Humidity 10～80%RH 20～50%RH
Max Wet Bulb Temperature / Max Dew Point Temperature 26℃ (Max Wet Bulb Temperature) 22℃ (Max Dew Point Temperature)
Recommended Storage Environment
Temperature 16～35℃(Short Term)/16～25℃(Long Term) 15～25℃
Humidity 20～80%RH(Short Term)/20～50%RH(Long Term) 20～50%RH
Max Wet Bulb Temperature / Max Dew Point Temperature 26℃ (Max Wet Bulb Temperature) 22℃ (Max Dew Point Temperature)
Allowable Operation Environment
Temperature 10～45℃ 15～35℃
Humidity 10～80%RH 20～80%RH
Max Wet Bulb Temperature / Max Dew Point Temperature 26℃ (Max Wet Bulb Temperature) 22℃ (Max Dew Point Temperature)
Allowable Storage Environment
Temperature 16～35℃(Short Term)/16～25℃(Long Term) 15～35℃
Humidity 20～80%RH(Short Term)/20～50%RH(Long Term) 20～80%RH
Max Wet Bulb Temperature / Max Dew Point Temperature 26℃ (Max Wet Bulb Temperature) 22℃ (Max Dew Point Temperature)
  • *1 Depends on the drive interface.
  • * The Universal Cleaning Cartridges are designed for use in all LTO Ultrium 1 through 9 drives.
    Specific revisions of firmware may be required for proper operation.
  • * WORM：WORM（Write Once Read Many）is data cartridge in which information, once written, cannot be modified.
    It is a cost-effective storage capability which ensures data is not overwritten, and to help address compliance regulations.
Media/Drive compatibility

〇：Read/write　△：Read only(no writing)　×：No read/write

Media/Drive G9 Drive G8 Drive G7 Drive G6 Drive G5 Drive G4 Drive
LTO G9 〇 × × × × ×
LTO G8 〇 〇 × × × ×
LTO G7 × 〇 〇 × × ×
LTO G6 × × 〇 〇 × ×
LTO G5 × × △ 〇 〇 ×
LTO G4 × × × △ 〇 〇

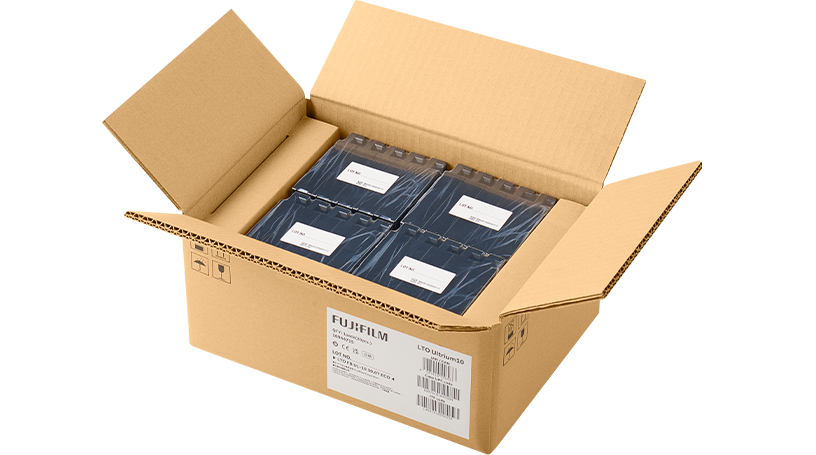

Eco Pack

Sustainable packing makes handling and managing LTO tapes significantly easier.

  • Eliminate individual small carton box and hard case, shrink wrapping.
  • Increase productivity (Takes 85% less time to open*2)
  • Reduce waste (waste reduced by 2/3 compared to regular products)
  • Reduce CO2 emissions (85% reduction in production process CO2 emissions)
  • Space saving (Uses approximately 30% less space*3)
  • Cartridges per Pack is 20.
  • *2 Figures obtained by comparing packaging material opening times.
  • *3 Compared to our standard products.
Data Tape Pro Case

The DATA TAPE COURIER PROFESSIONAL CASE, a new media container made of industrial-strength, lightweight, high-density polyethylene. The case features heavy-duty lockable compression clasps and soft interior contact points that create a durable seal. It can be used to transport data cartridges from one location to another or to off-site storage, in fulfillment of your company's commercial, proprietary and regulatory requirements. The DATA TAPE COURIER PROFESSIONAL CASE is certified and approved by FUJIFILM to protect LTO cartridges and enterprise cartridges.

Product Lineup
Warranty
Warranty
Warranty [PDF]

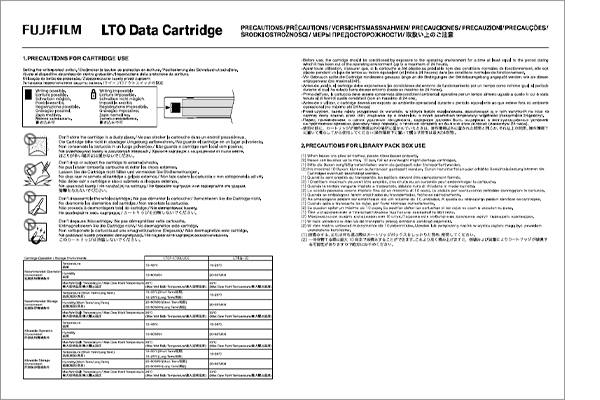

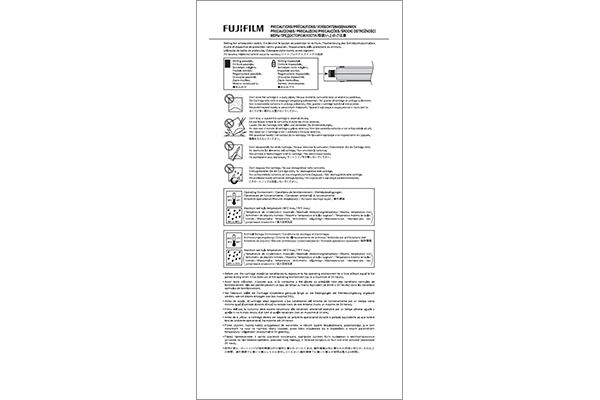

Precautions
Precautions
Precautions [PDF]
Disposal of Tape
Notice
Notice [PDF]
