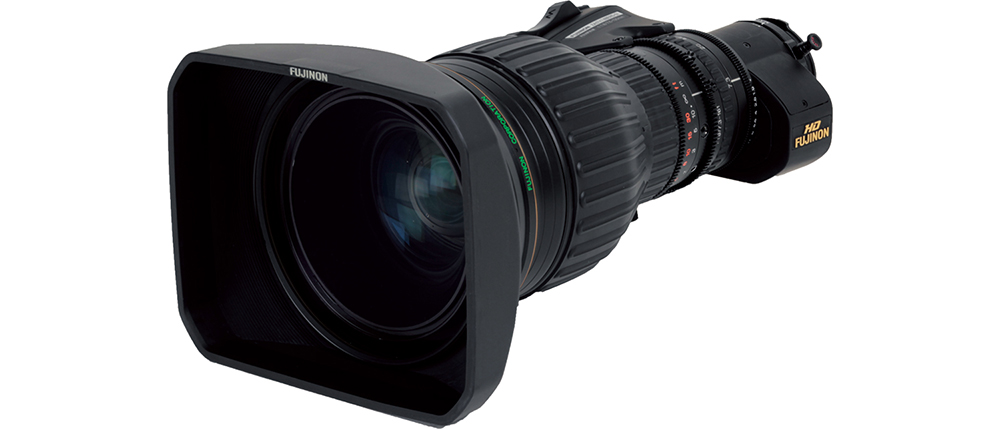

[photo] Fujinon 2/3 inch HD series camera lens

2/3” HD Premier Series - Overview

NEW
Contact Us
2/3" HD ENG Lenses

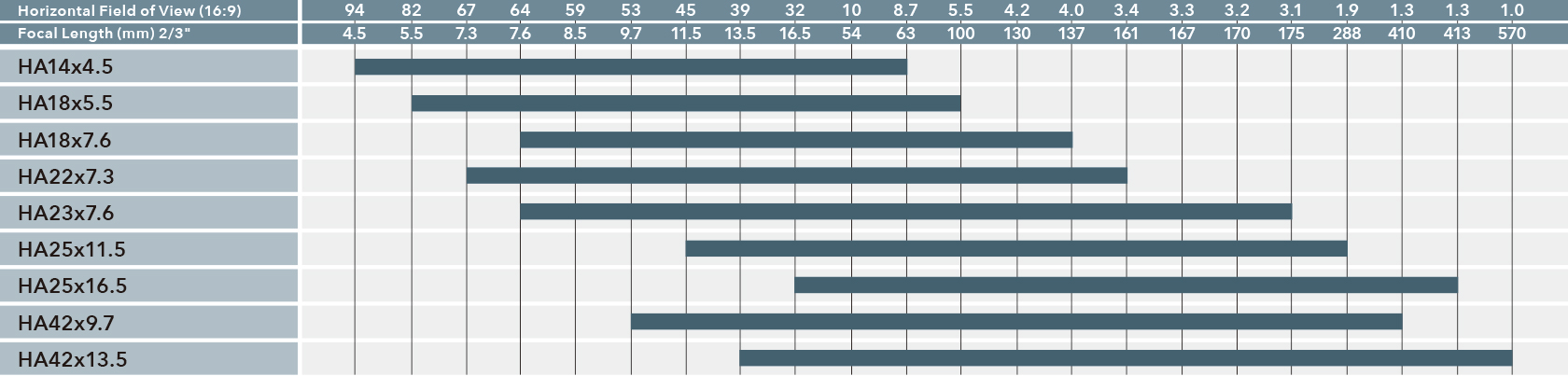

[image] Chart comparing the Horizontal Field of View (16:9) and the Focal Length (2/3 inch) by model number
Lineups
HA14×4.5BERM / BERD
  • 4.5mm super wide angle of HD Zoom Lens
  • Employed x2.2 extender for the fist time
  • Minimized image distortion and improved corner resolution and contrast.
  • Equiped New Ergonomical Digital Grip
  • 16bit encoders device for virtual system
[photo] 2/3 inch HD ENG lens model HA14×4.5BERM / BERD
Specifications
Model Name

HA14x4.5BERM / BERD

Focal length

[1x]
4.5−63mm

[2x]
−

[2.2×]
9.9−139mm

Zoom ratio

14x

Extender

2.2x

Maximum relative aperture (F-no.)

1 : 1.8 (4.5-41mm) / 1 : 2.8 (63mm)

Minimum object distance (M.O.D.) from front lens

0.3m

Object dimensions at M.O.D.
16 : 9 Aspect ratio

[1x]
4.5mm   744 x 418mm
63mm   51 x 29mm

[2.2x]
9.9mm   330 x 185mm
139mm   24 x 13mm

Angular field of view
16 : 9 Aspect ratio

[1x]
4.5mm  93.6° × 61.8°
63mm  8.7° × 4.9°

[2.2x]
9.9mm  51.7° × 30.5°
139mm  4° × 2.2°



Filter thread

M127 x 0.75 (Filter attaches to the lens hood.)

Approx. Size

Ф95 × 238.5mm(ΦxLength)

Approx. Mas

2.18kg(RM) / 2.26kg(RD) (without lens hood)

HA18x5.5BERM / BERD
  • Wider 5.5mm focal length at wide end
  • Outstading HD optical performance
  • Short MOD 0.4m
  • Popular built-in drive units for enhanced hand-holdabilty
  • 16bit encoders device for virtual system
[photo] 2/3 inch HD ENG lens model HA18x5.5BERM / BERD
Specifications
Model Name

HA18x5.5BERM / BERD

Focal length

[1x]
5.5-100mm

[2x]
11-200mm

[2.2×]
−

Zoom ratio

18x

Extender

2x

Maximum relative aperture (F-no.)

1 : 1.8 (5.5-62mm) / 1 : 2.9 (100mm)

Minimum object distance (M.O.D.) from front lens

0.4m

Object dimensions at M.O.D.
16 : 9 Aspect ratio

[1x]
5.5mm   800 x 450mm
100mm   44 x 25mm

[2x]
11mm   395 x 222mm
200mm   22 x 12mm

Angular field of view
16 : 9 Aspect ratio

[1x]
5.5mm  82.2° × 52.2°
100mm  5.5° × 3.1°

[2x]
11mm  47.1° × 27.5°
200mm  2.7° × 1.5°

Filter thread

M127 x 0.75 (Filter attaches to the lens hood.)

Approx. Size

Ф95 × 240.5mm(ΦxLength)

Approx. Mas

1.97kg(RM) / 2.04kg(RD) (without lens hood)

HA18×7.6BERM / BERD
  • Standard focal length coverage 7.6-137mm (275mm with extender)
  • HD optical perfomance
  • Equiped New Ergonomical Digital Grip
  • 16bit encoders device for virtual system
  • Light weight & Compact Design
[photo] 2/3 inch HD ENG lens model HA18×7.6BERM / BERD
Specifications
Model Name

HA18×7.6BERM / BERD

Focal length

[1x]
7.6−137mm

[2x]
15.2−274m

[2.2×]
−

Zoom ratio

18x

Extender

2x

Maximum relative aperture (F-no.)

1 : 1.8 (7.6-103mm) / 1 : 2.4 (137mm)

Minimum object distance (M.O.D.) from front lens

0.6m

Object dimensions at M.O.D.
16 : 9 Aspect ratio

[1x]
7.6mm   696 x 392mm
137mm   41 x 23mm

[2x]
15.2mm   326 x 204mm
274mm   21 x 12mm

Angular field of view
16 : 9 Aspect ratio

[1x]
7.6mm  64.5° × 39°
137mm  4° × 2.3°

[2x]
15.2mm  35° × 20.1°
274mm  2° × 1.1°

Filter thread

M82 x 0.75

Approx. Size

Ф85 × 204mm(ΦxLength)

Approx. Mas

1.62kg(RM) / 1.69kg(RD)  (without lens hood)

HA23×7.6BERD
  • High Power Zoom Ratio 23x in ENG Style lens
  • HD optical perfomance
  • Equiped New Ergonomical Digital Grip
  • 16bit encoders device for virtual system
  • Light weight & Compact Design
[photo] 2/3 inch HD ENG lens model HA23×7.6BERM / BERD
Specifications
Model Name

HA23×7.6BERD

Focal length

[1x]
7.6−175mm

[2x]
15.2−350mm

Zoom ratio

23x

Extender

2x

Maximum relative aperture (F-no.)

1 : 1.8 (7.6-122mm) / 1 : 2.65 (175mm)

Minimum object distance (M.O.D.) from front lens

0.8m

Object dimensions at M.O.D.
16 : 9 Aspect ratio

[1x]
7.6mm  915 × 514mm
175mm  41 × 23mm

[2x]
15.2mm  473 × 266mm
350mm  21 × 12mm

Angular field of view
16 : 9 Aspect ratio

[1x]
7.6mm  64.5° × 39°
175mm  3.1° × 1.8°

[2x]
15.2mm  35° × 20.1°
350mm  1.6° × 0.9°

Filter thread

M95 x 1 / M107 x 1 (Filter attaches to the lens hood.)

Approx. Size

Ф100 × 221.4mm(ΦxLength)

Approx. Mass

1.95kg(RD) (without lens hood)

HA25×11.5BERD
  • High Zoom Ratio 25x without lens bracket
  • Excellent HD optical performance
  • DiGIPOWER support
  • Extender remote feature is optionally available.
[photo] 2/3 inch HD ENG lens model HA25×11.5BERD
Specifications
Model Name

HA25×11.5BERD

Focal length

[1x]
11.5−288mm

[2x]
23−576mm

Zoom ratio

25x

Extender

2x

Maximum relative aperture (F-no.)

1 : 2 (11.5-206mm) / 1 : 2.8 (288mm)

Minimum object distance (M.O.D.) from front lens

2.2m

Object dimensions at M.O.D.
16 : 9 Aspect ratio

[1x]
11.5mm   1,740 x 978mm
288mm   70 x 39mm

[2x]
23mm   870 x 489mm
576mm   35 x 20mm

Angular field of view
16 : 9 Aspect ratio

[1x]
11.5mm  45.3° × 26.4°
288mm  1.9° × 1.1°

[2x]
23mm  23.6° × 13.4°
576mm  1° × 0.5°

Filter thread

M107 x 1 / M127 x 0.75 (Filter attaches to the lens hood.)

Approx. Size

Ф110 × 265mm(ΦxLength)

Approx. Mass

2.81kg (without lens hood)

HA25×16.5BERD
  • High Zoom Ratio 25x without lens bracket
  • Excellent HD optical performance
  • DiGIPOWER support
  • Extender remote feature is optionally available.
[photo] 2/3 inch HD ENG lens model HA25×16.5BERD
Specifications
Model Name

HA25×16.5BERD

Focal length

[1x]
16.5−413mm

[2x]
33−826mm

Zoom ratio

25x

Extender

2x

Maximum relative aperture (F-no.)

1 : 2.8 (16.5-289mm) / 1 : 4 (413mm)

Minimum object distance (M.O.D.) from front lens

2.2m

Object dimensions at M.O.D.
16 : 9 Aspect ratio

[1x]
16.5mm   1213 x 682mm
413mm   49 x 27mm

[2x]
33mm   606 x 341mm
826mm   24 x 14mm

Angular field of view
16 : 9 Aspect ratio

[1x]
16.5mm  32.4° × 18.6°
413mm  1.3° × 0.7°

[2x]
33mm  16.5° × 9.3°
826mm  0.7° × 0.4°

Filter thread

M107 x 1 / M127 x 0.75 (Filter attaches to the lens hood.)

Approx. Size

Ф110 × 278mm(ΦxLength)

Approx. Mass

2.9kg  (without lens hood)

HA42×9.7BERD
  • Highest Zoom Ratio 42x
  • Excellent HD optical performance
  • OS-TECH technorogy
  • Extender remote feature is optionally available.
[photo] 2/3 inch HD ENG lens model HA42×9.7BERD
Specifications
Model Name

HA42×9.7BERD

Focal length

[1x]
9.7−410mm

[2x]
19.4−820mm

Zoom ratio

42x

Extender

2x

Maximum relative aperture (F-no.)

1 : 2 (9.7-225mm) / 1 : 3.7 (410mm)

Minimum object distance (M.O.D.) from front lens

2.8m

Object dimensions at M.O.D.
16 : 9 Aspect ratio

[1x]
9.7mm   2,619 x 1,472mm
410mm   64 x 36mm

[2x]
19.4mm   1,339 x 753mm
820mm   33 x 19mm

Angular field of view
16 : 9 Aspect ratio

[1x]
9.7mm  52.6° × 31.1°
410mm  1.3° × 0.8°

[2x]
19.4mm  27.8° × 15.8°
820mm  0.7° × 0.4°

Filter thread

M127 x 0.75

Approx. Size

Ф130 × 338.5mm(ΦxLength)

Approx. Mass

5.3kg  (without lens hood)

HA42×13.5BERD
  • Highest Zoom Ratio 42x and 1,140mm at tele end
  • Excellent HD optical performance
  • OS-TECH technorogy
  • Extender Remote feature is optionally available.
[photo] 2/3 inch HD ENG lens model HA42×13.5BERD
Specifications
Model Name

HA42×13.5BERD

Focal length

[1x]
13.5−570mm

[2x]
27−1140mm

Zoom ratio

42x

Extender

2x

Maximum relative aperture (F-no.)

1 : 2.8 (13.5-307mm) / 1 : 5.2 (507mm)

Minimum object distance (M.O.D.) from front lens

2.8m

Object dimensions at M.O.D.
16 : 9 Aspect ratio

[1x]
13.5mm   1,888 x 1,061mm
570mm   45 x 25mm

[2x]
27mm   944 x 530mm
1,140mm   22 x 13mm

Angular field of view
16 : 9 Aspect ratio

[1x]
13.5mm  39.1° × 22.6°
570mm  1° × 0.5°

[2x]
27mm  20.1° × 11.4°
1140mm  0.5° × 0.3°

Filter thread

M127 x 0.75

Approx. Size

Ф130 × 357.5mm(ΦxLength)

Approx. Mass

5.4kg  (without lens hood)
