This is a collection of examples of lamination pressure measurement using Prescale.
Five examples of Dry film resist (DFR) lamination, Backgrind tape lamination roller, Electrophotographic heat fixing parts, Film Attaching Equipment and Cover glass attaching equipment are posted.
Industry: Printed Circuit Board(PCB), Lead frames, Liquid crystal, etc

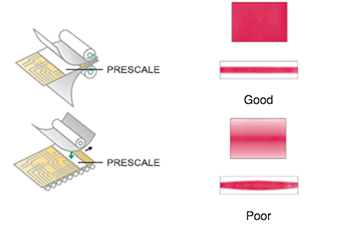

Challenges: Bubbles and wrinkes can be formed if the base material/dry film resist/lamination roll is not set up in balance or if the pressure is not adjusted to be uniform.
Benefits of Prescale: Time saving, Material savings
Industry: Semiconduvtor Production
Challenges: If the lamination roller pressure distribution is not uniform, the backgrind tape can become wrinkled.
Benefits of Prescale: Time saving, Quality improvemnet
Industry: Manufacturing/maintenace services of office equiment
Challenges: If the pressure between a heating roll and a pressing roll is not uniform, defective fixing or distortions in the paper may occur.
Benefits of Prescale: Saving time and labor for defect analysis and adjustment
Industry: Touch panels and LCDs
Challenges: If the pressure balance during this process is incorrect, air bubbles, wrinkles, positional displacement and other errors may occur, causing product failures.
Benefits of Prescale: Quality loss prevention, Time loss prevention
Industry: Touch panels and LCDs
Challenges: Since precision attachment is required between these hard materials, uneven pressure during the attachment process can cause air bubbles and other probelms.
Benefits of Prescale: Quality loss prevention, Time loss prevention
